Precision Round Cold Drawn Bearing Steel Tube Annealed GB / T18254 GCr15

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001
Model Number: GB / T18254 GCr15
Minimum Order Quantity: 1 MT
Price: NRGOTIABLE
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3-15 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thick Wall Application: Machinery
Certificate: PED|ISO|BV|TUV Delivery Condition: Annealed|Tempered
Product Name: Bearing Steel Tube Section Shape: Round
Standard: GB|SKF|ASTM|DIN|JIS|BS Technique: Seamless|Hot Rolled|Cold Drawn
High Light:

steel round tube

,

carbon steel tubing


Product Description





Precision Round Cold Drawn Bearing Steel Tube Annealed GB / T18254 GCr15



Quick Detail:



Products: GB/T18254 GCr15 Stainless Bearing Steel Tube
Standard: SKF/ ASTM/DIN/JIS/BS/GB
Size(mm):

OD:8mm ~ 101.6mm

WT:1.0mm ~ 10mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)





Description:



GB/T18254 GCr15 Bearing Steel Tube
1)Standards: Gcr 15, ISO 683/xv11, AISI 52100, JIS SUJ2
2)Chemical composition: C, Cr, Si, Mn, P, S





Specifications of Gcr 15/AISI 52100 Bearing Steel:


1) The comparison table for each standard

GB

ISO

ASTM

JIS

DIN

NF

Sweden

GB/T18254

9001:2008

52100

SUJ2

100Cr6

100C6

SKF3

2)Chemical compositon

Steel No.

Symbol

Chemical Compostion(Wt%)

  Gcr15

  AISI52100

C
0.95-1.05

Cr
1.30-1.65

Si
0.15-0.35

Mn
0.25-0.45

P
<0.027

S
<0.025



3) Thermal properties

Thermal Properties

Conditions

T (0C)

Treatment

Thermal Expansion (10-6/0C)

11.9

0-100

Annealed







Process: Cold Rolled, Cold Drawn, Hot Rolled, Hot rolled+Cold Drawn



Delivery Condition:  Cold Finished, Hot Finished, Annealed, Spheroidize Annealed, Quenched and Tempered



Surface:  Black, Peeled (K12), Turned & Polished (H10, H11), Precision Ground (H9, H8), Honed or SRB(H9, H8)





GB18254 GCr 15 Bearing Pipe and Tube Features:



1. Cleanliness and freedom from objectionable microscopic slag type inclusions.

2. Shallow decarburized surface.

3. Good surface quality.

4. Excellent micro-structure uniformity.

5. Tight tolerances, resulting in reduced machine time.

6. Wear resistance, long service life.



Third Party inspection acceptable. such as SGS, BV etc.





Applications:



1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.

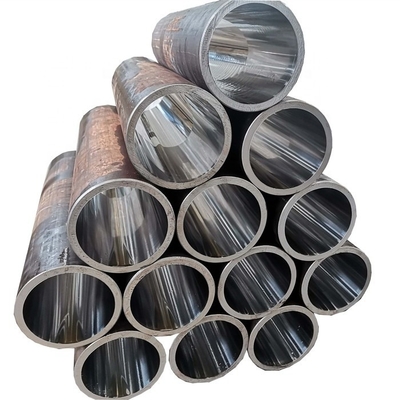

Product Photo
