| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | JIANGSU HUACHENG |
| Certification: | ISO9001 14001 BV TUV PED DNV etc |
| Model Number: | HC |
| Minimum Order Quantity: | 5MT |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 25~35days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Application: | Machinery | Certificate: | PED, ISO, BV, TUV |
|---|---|---|---|
| Delivery Condition: | Heat Treatment | Product Name: | Bearing Steel Tube |
| Section Shape: | Round | Standard: | GB, SKF, ASTM, DIN, JIS, BS |
| Technique: | Seamless, Hot Rolled, Cold Drawn | ||
| High Light: | steel round tube,thin wall steel tube |
||

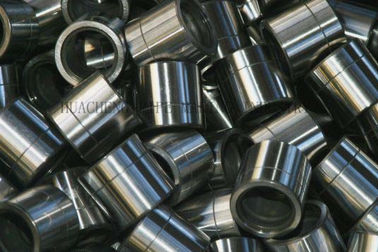

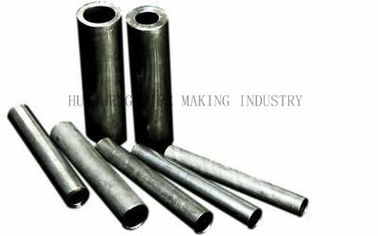

ASTM SKF GB Hot Rolled Bearing Steel Tube , JIS G4805 SUJ1 Stainless Steel Pipes
Quick Detail:
Products: JIS G4805 SUJ1 Stainless Bearing Steel Tube
Standard: GB / SKF/ ASTM / DIN / JIS / BS
Size(mm):
OD:8mm ~ 101.6mm
WT:1.0mm ~ 10mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)
Description:
JIS G4805 SUJ1 is a kind of high-carbon chromium bearing steel. bearing steel is a low hardenability steel with good impact resistance .
This material has been used for railcar axle box bearing,changes GCr15SiMn or GCr15 the situation whose use for bearing inner rings. Now the life is one time longer than before. A295 51100 is usually for steel balls or running pulley of low loading and simple shape machine shaft.
The equal material of JIS G4805 SUJ1 in different standard.
|
GB/T 18254 |
JIS G4805 |
ASTM A295 |
|
GCr9 |
SUJ1 |
51100 |
JIS G4805 SUJ1 chemical composition:
|
C |
Si |
Mn |
Cr |
Mo |
P |
|
1.0-1.10 |
0.15-0.35 |
0.15-0.45 |
0.9-1.2 |
≤0.08 |
≤0.025 |
JIS G4805 SUJ1 mechanical property and delivery condition:
|
|
Standard |
Delivery Condition |
Anneal (soften or spheroidizing ) hardness HBW |
|
|
Technical conditions |
Specification |
|||
|
Hot rolled bar |
GB/T 18254 |
GB/T 702 |
Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin. |
179-207 |
|
Forging bar |
GB/T 908 |
|||
|
Cold drawn bar |
GB/T 905 |
Cold drawn or burnishing |
||
|
Hot rolled tube/pipe |
GB/T 18254 |
Hot rolled,hot rolled annealing burnishing |
||
|
Cold drawn tube/pipe |
Cold drawn |
|||
|
steel wire rod |
GB/T 18254 |
GB/T 14981 |
Hot rolled or spheroidizing annealing |
|
Generally, in china, we usually use fully-hardenability heat treatment,that is,entire inductive heating-surface quenching heat treatment, to make the surface of the material high hardness and abrasive resistance of fully quenching high-carbon chromium bearing steel,and to make the core high toughness and good impact propriety.
Applications:
1,Mainly used for manufacturing ordinary rolling bearing ring.
2,other applications such as used for automotive industry and bearings in rotating machinery.
Competitive Advantage:
Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.
Factroy Pictures:
Pipe & Tube Processing
Factory Equipments:
Production Line:
Quality Control:
Steel Pipe & Tube Application:
Package:
Export Standard / Wooden Box
Main Certificates:
PED ISO BV TUV etc.
Main Customers:
