ASTM A106 Gr.B Seamless Carbon Steel Pipe Round Annealed Precision Steel Tube Hydraulic Cylinder

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO
Model Number: ASTM A106 Gr.B
Minimum Order Quantity: 1 MT
Price: NRGOTIABLE
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~15days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Application: Hydraulic Cylinder Section Shape: Round
Technique: Seamless|Cold Drawn Thickness: 1 - 120 Mm
Length: 12M, 6m, 6.4M, 6m,5.8m,11.8m,12m, Or As Required Surface: Black Painted,PE Coated
High Light:

Cold Drawn steel Pipe

,

Precision Seamless Steel Tube


Product Description



ASTM A106 Gr.B Seamless Carbon Steel Pipe Round Annealed Precision Steel Tube Hydraulic Cylinder



Product Description



1. Grade: ASTM A106B ,JIS G3456 ,DIN 17175ST45.8,GB 5310 20G,GB 6479 20G

2. Size: 3-200MM

3. Standard: ASTM,AISI,JIS,DIN,GB,EN



Product Name

High quality ASTM A106 Gr.B seamless carbon steel pipe / ASTM A106 Gr.B seamless
steel pipe / A106 Gr.B steel pipe

Material

seamless carbon steel pipe

Surface

Black painted,PE coated

Standard

ASTM A106 Grade B (20#)

(GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519)

Grade

ASTM A106B ,JIS G3456 ,DIN 17175ST45.8,GB 5310 20G,GB 6479 20G

Thickness

0.3-200mm

Width

1000mm,1220mm,1500mm or as required

Length

2000mm,2400mm,4000mm,or as required.

Application Hydraulic Cylinder





Processing Range And Precision



Cold Drawn Tubes:

ID:45mm-630mm

Length:14,000mm

Straightness:0.3-1.0

Precision:H8-H10

Roughness:Ra0.8-Ra1.6

Honing Tubes:

ID:25mm-500mm

Length:10,000mm

Straightness:0.3

Precision:H7-H8

Roughness:Ra0.2-Ra0.8





ID Tolerance of Precision Honed Tubes



SIZE of I.D

I.D.Tolerance

Tolerance of wall thickness

H8

H9

H10

30

+0.0330

+0.0520

+0.0840

<120mm(O.D)                 ±5%

≥120mm(D.D) to 210mm  ±7.5%

>210mm                         ±10%

>30-50

+0.0390

+0.0620

+0.1000

>50-80

+0.0460

+0.0740

+0.1200

>80-120

+0.0540

+0.0870

+0.1400

>120-180

+0.0630

+0.1000

+0.1600

>180-250

+0.0720

+0.1150

+0.185

>250-315

+0.0810

+0.1300

+0.2100

>315-400

+0.0890

+0.1400

+0.2300





Mechanical Propety



Material: 20# 45#,16Mn St45, St52, 25Mn,27SiMn, SAE1026.SAE1518 etc.

STANDARD: GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519



Delivery condition

cold finished(hard)(BK)

cold drawn and stress relieved(BK+S)

STEEL GRADE

Rm  MPa

Elongation (%)

Rm  MPa

ReH  MPa

Elongation (%)

ASTM A106 Gr.B

≥550

≥ 8

≥ 520

≥ 375

≥ 15

45#

≥ 640

≥ 5

≥ 600

≥ 520

≥ 10

16Mn

≥ 640

≥ 5

≥ 600

≥ 520

≥ 14

25Mn

≥ 640

≥ 5

≥ 600

≥ 510

≥ 15

27SIMn

≥ 800

≥ 5

≥ 760

≥ 610

≥ 10

ST45

≥ 550

≥ 5

≥ 520

≥ 375

≥ 15

E355(ST52)

≥ 640

≥ 5

≥ 600

≥ 520

≥ 14

SAE1026

≥ 640

≥ 5

≥ 600

≥ 510

≥ 15



Good choice for our hydraulic cylinder Tubes



1.Merge together with Europe security idea

Our whole set hydraulic cylinder system with multi-protection can protect the safety of worker &truck and cargo.



2.Specialized system configuration

Specialized system configuration that greatly improve work efficiency and reduce system weight .



3.custom made is available

We can design different hydraulic tubes for system applied for truck,lifting platform,hydraulic door and so on





Quality Control



Our Cylinder Tubes from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ BV/TUV/PED etc)





Application



Our products are widely used in hydraulic and pneumatic power systems,petro-chemical and metallurgical fields, CNG cylinder productions and so on..





Competitive Advantage



Our Company is one of the largest seamless steel pipe manufacturers in China.

We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.





Product Photo



ASTM A106 Gr.B Seamless Carbon Steel Pipe Round Annealed Precision Steel Tube Hydraulic Cylinder 0

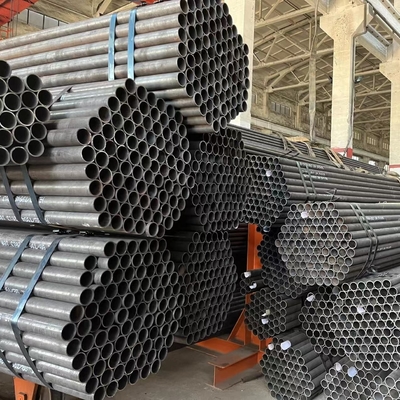

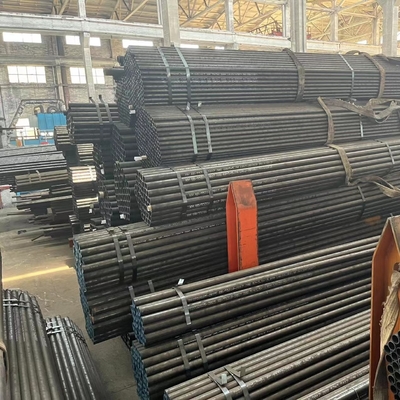

Factroy Pictures


JIS G3445 STKM11A, STKM 12A, STKM 12C, STKM 13A Cold Drawn Seamless Steel Tube 1

Pipe & Tube Processing


JIS G3445 STKM11A, STKM 12A, STKM 12C, STKM 13A Cold Drawn Seamless Steel Tube 2

Packaging & Shipping


JIS G3445 STKM11A, STKM 12A, STKM 12C, STKM 13A Cold Drawn Seamless Steel Tube 3JIS G3445 STKM11A, STKM 12A, STKM 12C, STKM 13A Cold Drawn Seamless Steel Tube 4

Certificates
JIS G3445 STKM11A, STKM 12A, STKM 12C, STKM 13A Cold Drawn Seamless Steel Tube 5
FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
