Round Thick Wall Alloy Steel Seamless Metal Tubes ASTM A210 / ASME SA210 / ASTM A213
what can you buy from us?
seamless steel pipe,carbon steel pipe,alloy steel pipe,stainless steel pipe,stainless steel coil
|
item
|
Seamless carbon steel pipe
|
|
Standard
|
ASTM A210 / ASME SA210 |
|
Grade
|
SA210 A1, Grade C
|
|
Thickness
|
2mm - 50mm
|
|
Section Shape
|
Round
|
|
Out Diameter
|
12mm - 750mm
|
|
Place of Origin
|
China
|
|
Application
|
Fluid Pipe, boiler,superheater,and heat-exchanger tubes
|
|
Technique
|
Hot Rolled/ Cold-drawn
|
|
Surface Treatment
|
Coated
|
|
Special Pipe
|
API Pipe
|
|
Alloy Or Not
|
Non-Alloy
|
|
Tolerance
|
±3%
|
|
Type
|
Seamless Steel Pipe
|
|
Processing Service
|
Bending, Welding,Punching, Cutting
|
Chemical Requirements
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
ASTM A210 |
A-1 |
≤0.27 |
≥0.10 |
≤0.93 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
C |
≤0.35 |
≥0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
|
B |
≤0.30 |
≤0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
≤0.40 |
≤0.15 |
≤0.40 |
≤0.40 |
≤0.08 |
|
|
C |
≤0.35 |
≤0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
≤0.40 |
≤0.15 |
≤0.40 |
≤0.40 |
≤0.08 |
|
|
B |
0.3 |
/ |
1.2 |
0.05 |
0.045 |
0.40 |
0.15 |
0.40 |
0.40 |
0.08 |
|
Mechanical Properties:
|
Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
|
A-1 |
≥255 |
≥415 |
30 |
|
C |
≥275 |
≥485 |
30 |
Wall Thickness Tolerance
|
ASME SA-210 |
OD |
WT |
WT Tolerance |
|
<=38.1 |
/ |
+20%,-0% |
|
|
>38.1 |
/ |
+20%,-0% |
Wuxi Sylaith STEEL Boiler Tube and Material/Steel Grade:
|
HUACHENG STEEL Boiler Tube and Material/Steel Grade |
|
|
JIS |
JIS G 3461 (STB340, STB410, STB510) |
|
JIS G 3462 (STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26) |
|
|
JIS G3454 JIS G3455 |
|
|
JIS G3458 |
|
|
JIS G3460 |
|
|
JIS G 3464 (STBL380, STBL450, STBL690) |
|
|
ASTM |
ASTM A178/A178M (GRADE A, C, D) |
|
ASTM A179/A179M |
|
|
ASTM A192/A192M |
|
|
ASTM A213/A213M (T2,T5,T5b, T5c,T9,T11,T12,T17,T21,T22,T23 etc) |
|
|
ASTM A214/A214M |
|
|
ASTM A250/A250M |
|
|
ASTM A1020/A1020M (GRADE A, C, D) |
|
|
DIN |
DIN17175(St 35.8, St 45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63, X20CrMoV121) |
|
GB |
GB3087(10#, 20#), GB5310(20G, 20MnG, 25MnG, 15MoG, 20MoG, 15CrMoG, 12Cr1MoVG, 10Cr9Mo1VNbN etc) |
Applications
High pressure, low & medium pressure boiler steel pipes & tubes are suitable for making super-heaters, re-heaters, water wall, and economizer in large-scale power plant.

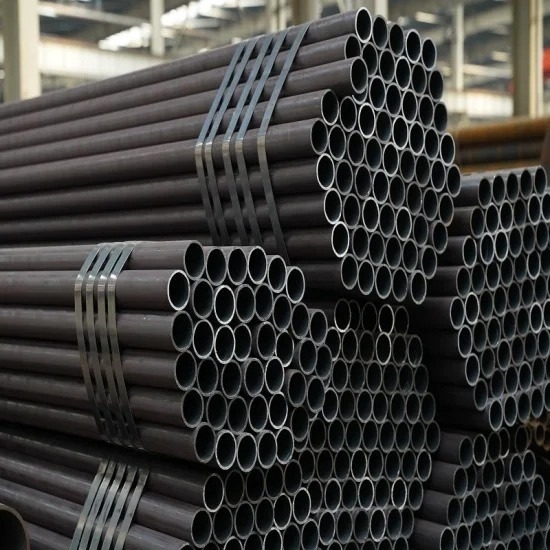

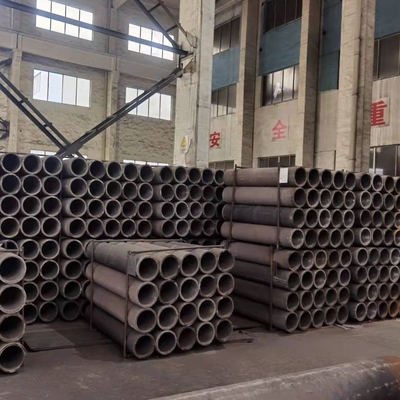

Product Photo
Product Process
Factroy Pictures
Pipe & Tube Processing Photo
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
