| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | ISO9001 |
| Model Number: | ASTM A213 |
| Minimum Order Quantity: | 1MT |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 3-15 DAYS |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Technique: | Seamless|Cold-Drawn | Standard: | DIN 17175 ASTM A213 ASME SA210 |
|---|---|---|---|
| Size: | Customized | Shape: | Round |
| Materials: | 10CrMo910 | Surface: | Nature |
| High Light: | Anti Corrosion Seamless Metal Tubes,Cold Drawn Seamless Round Tube,Seamless Metal Round pipe |
||

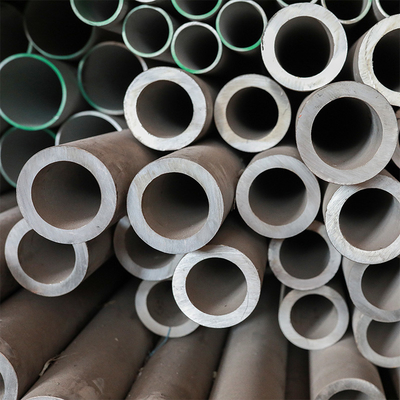

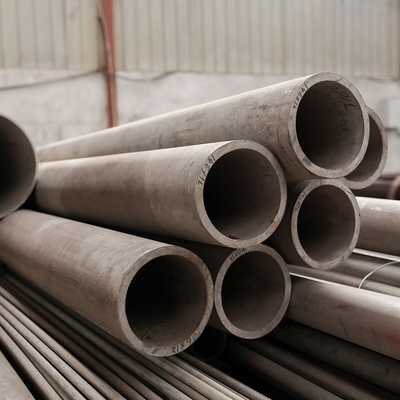

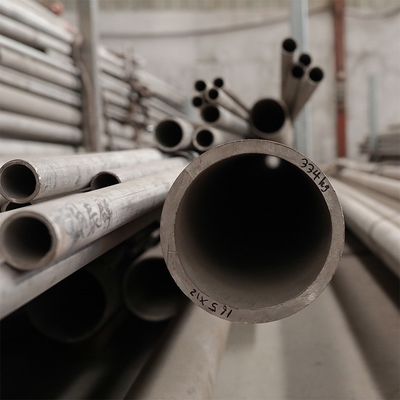

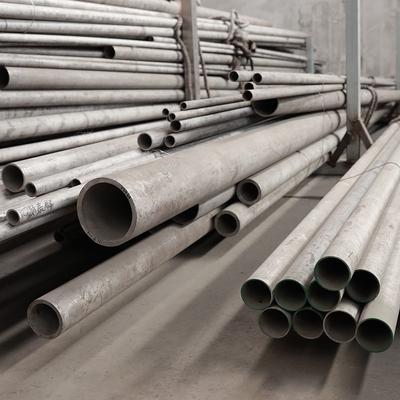

DIN 17175 ASTM A213 ASME SA210 Seamless Metal Tubes , Round Steel Pipe 10CrMo910
Quick Detail:
DIN 17175 10CrMo910
Standard: DIN 17175
Grade: 10CrMo910
OD. Range:10mm – 200 mm
Wall thickness: 0.5 mm-20mm
Length: Max length 12m
Description:
|
Executive Standard |
DIN 17175 |
|
|
Materials |
DIN 17175 10CrMo910 |
|
|
Ends |
PE/Beveled,plastic caps on both ends |
|
|
Technical Methods |
Cold-drawn |
|
|
Application |
boiler,superheater,and heat-exchanger tubes |
|
|
Certificates |
ISO |
|
|
Third Party Inspection |
SGS |
|
Chemical Composition:
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||
|
C |
Si |
Mn |
P,S |
Cr |
Mo |
||
|
DIN 17175 |
St35.8 |
≤0.17 |
0.10-0.35 |
0.40-0.80 |
≤0.030 |
/ |
/ |
|
St45.8 |
≤0.21 |
0.10-0.35 |
0.40-1.20 |
≤0.030 |
/ |
/ |
|
|
15Mo3 |
0.12-0.20 |
0.10-0.35 |
0.40-0.80 |
≤0.030 |
/ |
0.25-0.35 |
|
|
13CrMo44 |
0.10-0.18 |
0.10-0.35 |
0.40-0.70 |
≤0.030 |
0.70-1.10 |
0.45-0.65 |
|
|
10CrMo910 |
0.08-0.15 |
≤0.50 |
0.40-0.70 |
≤0.030 |
2.00-2.50 |
0.90-1.20 |
|
Mechanical Properties:
|
Standard |
Steel grade |
Tensile(MPa) |
Yield(MPa) |
Elongate(%) |
Hardenss |
|
10CrMo910 |
10CrMo910 |
480～630 |
≥280 |
≥20 |
|
|
20MnG |
20MnG |
≥415 |
≥240 |
≥22 |
|
|
25MnG |
25MnG |
≥485 |
≥275 |
≥20 |
|
|
15CrMoG |
15CrMoG |
440～640 |
≥235 |
≥21 |
|
|
12Cr2MoG |
12Cr2MoG |
450～600 |
≥280 |
≥20 |
|
|
12Cr1MoVG |
12Cr1MoVG |
470～640 |
≥255 |
≥21 |
|
|
12Cr2MoWVTiB |
12Cr2MoWVTiB |
540～735 |
≥345 |
≥18 |
|
|
10Cr9Mo1VNb |
10Cr9Mo1VNb |
≥585 |
≥415 |
≥20 |
|
|
ASME SA210 |
SA210A-1 |
≥415 |
≥255 |
≥30 |
≤143HB |
|
SA210C |
SA210C |
≥485 |
≥275 |
≥30 |
≤179HB |
|
ASME SA213 |
SA213 T11 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T12 |
SA213 T12 |
≥415 |
≥220 |
≥30 |
≤163HB |
|
SA213 T22 |
SA213 T22 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T23 |
SA213 T23 |
≥510 |
≥400 |
≥20 |
≤220HB |
|
SA213 T91 |
SA213 T91 |
≥585 |
≥415 |
≥20 |
≤250HB |
|
SA213 T92 |
SA213 T92 |
≥620 |
≥440 |
≥20 |
≤250HB |
|
DIN17175 |
ST45.8/Ⅲ |
410～530 |
≥255 |
≥21 |
/ |
|
15Mo3 |
15Mo3 |
450～600 |
≥270 |
≥22 |
|
|
13CrMo44 |
13CrMo44 |
440～590 |
≥290 |
≥22 |
|
Permitted tolerance for OD:
|
OD |
Plus tolerance(+) |
Minus tolerance (-) |
|
10.29—48.3 |
0.4 |
0.4 |
|
<48.3—-≤114.3 |
0.79 |
0.79 |
|
<114.3—≤219.1 |
1.59 |
0.79 |
|
<219.1—≤323.9 |
2.38 |
0.79 |
|
<323.9 |
±1% |
|
HUACHENG STEEL Boiler Tube and Material/Steel Grade:
|
HUACHENG STEEL Boiler Tube and Material/Steel Grade |
|
|
JIS |
JIS G 3461 (STB340, STB410, STB510) |
|
JIS G 3462 (STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26) |
|
|
JIS G3454 JIS G3455 |
|
|
JIS G3458 |
|
|
JIS G3460 |
|
|
JIS G 3464 (STBL380, STBL450, STBL690) |
|
|
ASTM |
ASTM A178/A178M (GRADE A, C, D) |
|
ASTM A179/A179M |
|
|
ASTM A192/A192M |
|
|
ASTM A213/A213M (T2,T5,T5b, T5c,T9,T11,T12,T17,T21,T22,T23 etc) |
|
|
ASTM A214/A214M |
|
|
ASTM A250/A250M |
|
|
ASTM A1020/A1020M (GRADE A, C, D) |
|
|
DIN |
DIN17175(St 35.8, St 45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63, X20CrMoV121) |
|
GB |
GB3087(10#, 20#), GB5310(20G, 20MnG, 25MnG, 15MoG, 20MoG, 15CrMoG, 12Cr1MoVG, 10Cr9Mo1VNbN etc) |
Applications:
High pressure, low & medium pressure boiler steel pipes & tubes are suitable for making super-heaters, re-heaters, water wall, and economizer in large-scale power plant.
Product Application
Packing & Delivery
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
