Round Thin Wall Seamless Carbon Steel Tube Thickness 1 - 30 mM ASME SA106 / ASTM A106106
Product Details
| Application: | Boiler Chemical | Special Pipe: | EMT Pipe, Thick Wall Pipe |
|---|---|---|---|
| Thickness: | 1.24 - 59.54 Mm | End Protector: | Plastic Pipe Cap |
| Standard: | ASTM A106 ASME SA106 | Type: | Seamless |
| Tolerance: | ±5%, ±1%, ±10% | ||
| Highlight |
cold drawn seamless tube,cold drawn Steel Tube |
||
Product Description
Round Thin Wall Seamless Carbon Steel Tube Thickness 1 - 30 mm ASME SA106 / ASTM A106
It can be used for Temperature-resistant seamless steel pipe for high-pressure boiler and Seamless carbon steel pipe for high temperature sevice.
| Standards | ASTM A106 , ASME SA106 |
| Available steel grades | GradeA GradeB and GradeC |
| Diameter | 6mm to 350mm |
| Thickness | 1 to 30 mm |
| Length | 5m~25m; |
| Packing | Beveled / black painting / plastic caps / in bundles / steel strips / wooden protection |
| Inspection and Test | Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test. |
| Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Delivery Condition | Annealed, Normalized, Normalized and Tempered |
Grade and Chemical Composition
| C≤ | Mn | P≤ | S≤ | Si≥ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ |
A | 0.25 | 0.27-0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
C | 0.35 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Mechanical Properties
Grade | Rm Mpa Tensile Strength | Mpa | Elongation | Delivery Condition |
A | ≥330 | ≥205 | 20 | Annealed |
B | ≥415 | ≥240 | 20 | Annealed |
C | ≥485 | ≥275 | 20 | Annealed |
Dimension Tolerances
Pipe Type | Pipe Sizes | Tolerances | |
Cold Drawn | OD | ≤48.3mm | ±0.40mm |
≥60.3mm | ±1%mm | ||
WT | ±12.5% | ||
Applications
For petroleum/ natural gas pipeline , for conveying water,drainage,coal gas, mineral slurry and other low-middle
pressure liquids. Also for chemical industry, building structure,heat-supply and pile driving projects.

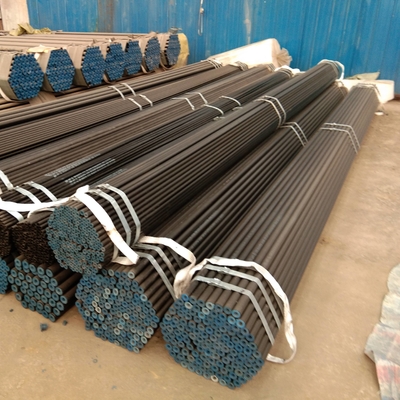

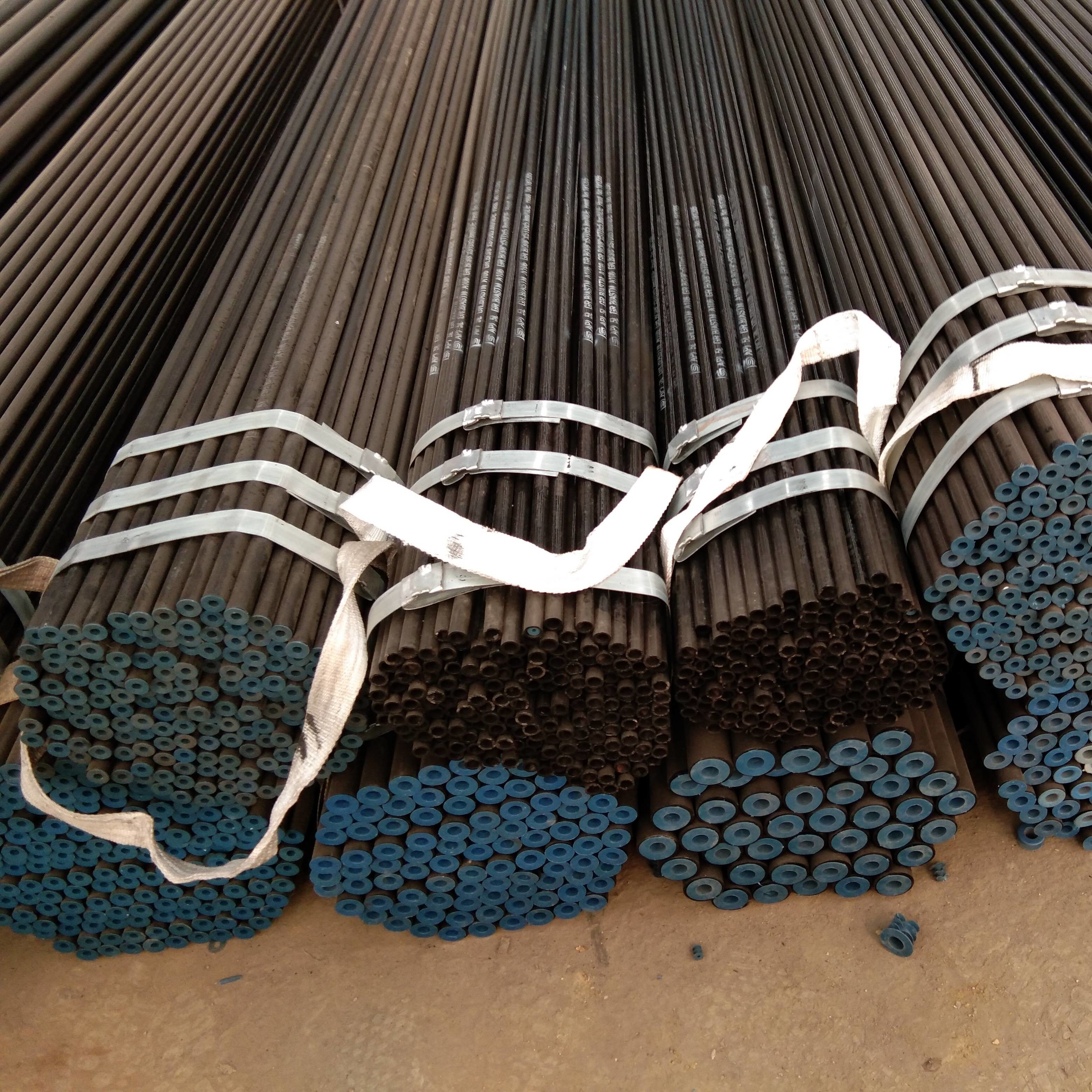

Product Photo
Factroy Picture
Pipe & Tube Processing Photo
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time
