ASTM A192 A192M Annealed Seamless Carbon Steel Pipe Thin Wall Thickness 13mm
Product Details
| Application: | Boiler|Construction|Chemical|Exchanger | Delivery Condition: | Annealed|Normalized|Tempered |
|---|---|---|---|
| Grade: | A179|Grade A|A192|Grade A1 | Material: | Carbon Steel |
| Product Name: | Seamless Carbon Steel Tube | Section Shape: | Round |
| Standard: | ASTM A192|A192M | Surface Treatment: | Varnish|Oil-dip|Passivation|Phosphating|Shot Blasting |
| Highlight |
cold drawn seamless tube,cold drawn Steel Tube |
||
Product Description
ASTM A192 A192M Annealed Seamless Carbon Steel Pipe Thin Wall Thickness 13mm
Product Description:
|
Standard
|
API, ASTM, GB
|
||
|
Outside Diameter
|
25-650mm
|
||
|
Wall Thickness
|
3-120mm
|
||
|
Dia Tolerance
|
Control with in the standard, OD:+-1%, WT:+-12.5%
|
||
|
Materials
|
C10, C20, C45, Q235, Q355
|
||
|
ASTM A53/106 Gr.B, A179/A192, API5L Gr.B
|
|||
|
ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5
|
|||
|
16Mn, Q355B, T1, T2, T5, T9, T11, T12, T22, T91, T92, P1, P2, P5, P9, P11, P12, P22, P91,
P92, 15CrMO, 1Cr5Mo,10CrMo910,12CrMo, 12Cr5Mo, 12Cr1MoV, 13CrMo44, 30CrMo,
42CrMo, A333 GR.6
|
|||
|
Gr.B,X42,X46,X52,X60,X65,X70,X90
|
|||
|
Inspection
|
ISO,BV,SGS,MTC
|
||
|
Packing
|
export package
|
||
|
Application
|
Widely used in Structure, Accessorize,Construction,
Fluid transportation,machinery parts,the stress parts of the automobile Oil and gas transportation, auto parts, etc. |
||
|
MOQ
|
1ton
|
||
|
Shipment time
|
Within 7-10 workdays after receiving deposit or L/C
|
||
Chemical Composition:
|
Product |
Ttem |
Grade |
Chemical composition |
|||||||
|
C |
Si |
Mn |
P.≤ |
S.≤ |
Cr |
Ni |
others |
|||
|
Carbon steel |
1 |
10 |
0.07/0.13 |
0.17/0.37 |
0.35/0.65 |
0.03 |
0.03 |
≤0.15 |
≤0.30 |
Cu≤0.25 |
|
2 |
20 |
0.17/0.23 |
0.17/0.37 |
0.35/0.65 |
0.03 |
0.03 |
≤0.25 |
≤0.30 |
Cu≤0.25 |
|
|
3 |
A179 |
0.06/0.18 |
- |
0.27/0.63 |
0.03 |
0.03 |
- |
- |
- |
|
|
4 |
A192 |
0.06/0.18 |
≤0.25 |
0.27/0.63 |
0.03 |
0.03 |
- |
- |
- |
|
Mechanical Properties:
|
Item |
Mark |
Tensile property |
Hardness |
||||
|
Extension strength Rm Mpa |
Lower Yield strength Rel or Rp0.2 MPa |
lower Yield strength ReL or Rp0.2 Mpa |
|||||
|
Thickness |
Thickness |
||||||
|
≤16 |
>16 |
<5.1 |
≥5.1 |
||||
|
≥ |
≤ |
||||||
|
1 |
10 |
335~475 |
205 |
195 |
24 |
- |
- |
|
2 |
20 |
410~530 |
245 |
235 |
20 |
- |
- |
|
3 |
A179 |
≥325 |
180 |
35 |
- |
- |
|
|
4 |
A192 |
≥325 |
180 |
35 |
77HRB |
137HB |
|

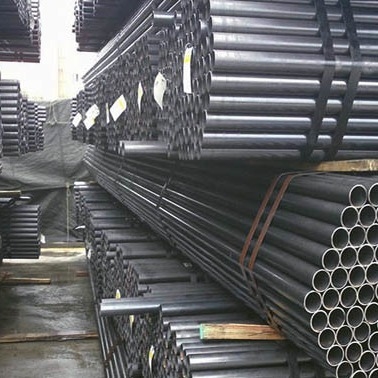

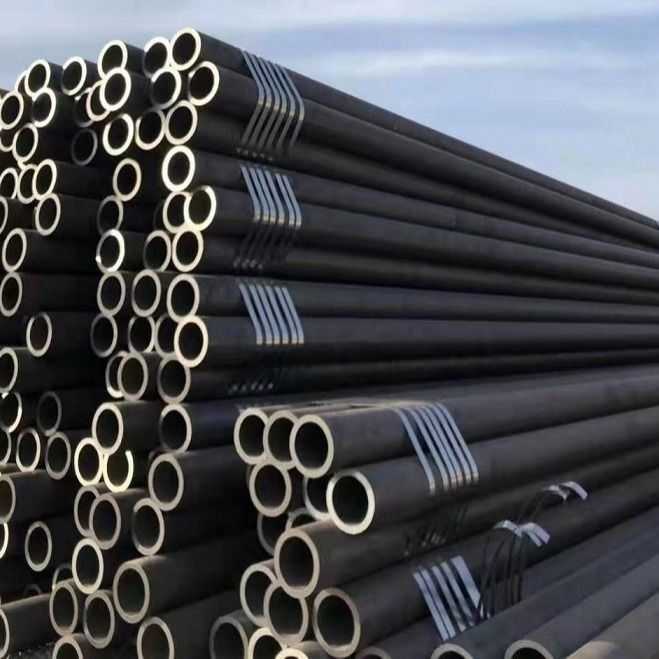

Detailed Photo:
Factory Photo:
Processing:
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi SylaithSpecial Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
