ASTM A210 A210M Gr A1 Gr C Fluid Pipe Seamless Steel Boiler Tube Tempered With ISO
Product Details
| Wall Thickness: | 0.8mm-15mm Or As Required | Standard: | ASTM A210/A210M (ASME SA210/SA210M) |
|---|---|---|---|
| Length: | 1-25mm Or As Required | Shape: | Round Or As Required |
| OD: | 1mm-130mm Or As Required | Technique: | Seamless Weld |
| Highlight |
seamless stainless steel tube,Seamless Steel Tubing |
||
Product Description
ASTM A210 A210M Fluid Pipe Seamless Steel Boiler Tube Tempered With High Quality
ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.
ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes.
ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations.
Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished.
Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements.
Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.
| Product |
ASTM A210/A210M Seamless Medium-Carbon Steel Boiler Tubes |
| Type | Seamless Medium-Carbon Steel Boiler and Superheater Tubes |
| Standard | ASTM A210/A210M (ASME SA210/SA210M) |
| Out Dimensions | 10mm-114.35mm or as required |
| Wall Thickness | 0.5mm-15mm or as required |
| Length | 1-12mm or as required |
| Steel Grade | Grade A1; Grade C |
| Packing | Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection |
| Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Mark |
As your require |
| Delivery Condition | Annealed, Normalized, Normalized and Tempered |
| Applications | It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube |
Chemical Requirements
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
ASTM A210 |
A-1 |
≤0.27 |
≥0.10 |
≤0.93 |
≤0.035 |
≤0.035 |
- |
- |
- |
- |
- |
|
C |
≤0.35 |
≥0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
- |
- |
- |
- |
- |
|
Mechanical Properties
|
Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
|
A-1 |
≥255 |
≥415 |
30 |
|
C |
≥275 |
≥485 |
30 |
Wall Thickness Tolerance
|
ASME SA-210 |
OD |
WT |
WT Tolerance |
|
<=38.1 |
/ |
+20%,-0% |
|
|
>38.1 |
/ |
+20%,-0% |

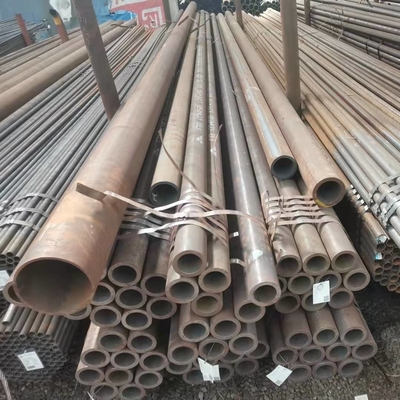

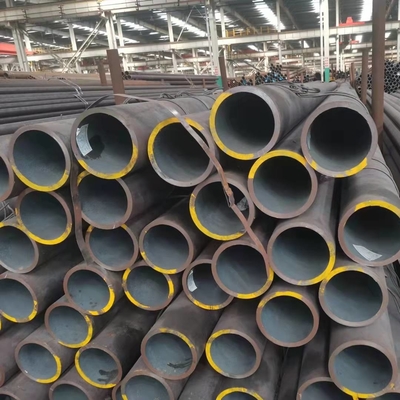

Product Photo
Factroy Picture
Pipe & Tube Processing
Factory Equipments
Quality Control
Steel Pipe & Tube Application
Packing & Shipping
Main Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
