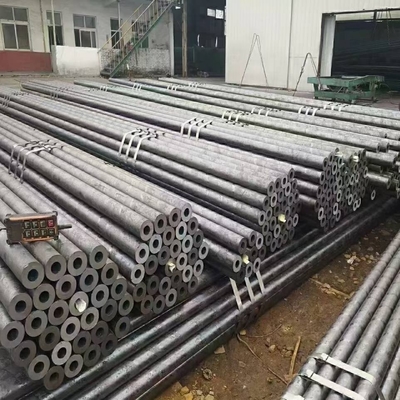

ASTM A210 Seamless Carbon Steel Tube , Boiler Steel Pipe Wall Thickness 0.8mm - 15mm
Product Description:
ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.
|
Product name
|
Seamless steel pipe; SMLS steel pipes
|
|
Standards & Grades |
GB/T8162 20#, 35#, 45# Q345, Q345B, Q345C, Q345D, Q345E, 20Mn2, 30Mn2, 40Mn2, 20CrMo, 30CrMo, 35CrMo, 42CrMo; GB/T8163 20#;
GB/T3087 10#, 20#; GB/T5310 20G, 20MnG, 25MnG, 15CrMoG, 12Cr1MoVG; GB/T9948 20#, 16Mn,12CrMo, 15CrMo; GB6479 20#, 16Mn, 12CrMo, 15CrMo; ASME SA213 T5, T9; API 5L, A, B, X42, X46, X56, X60, X65; ASTM A106, ASTM A53 Gr B; SA210, SA178, SA192, SA335, T2/P2, T11/P11, T12/P12, T22/P22, T91/P91; DIN 17175 ST35.8, ST45.8, DIN1629; API 5L Gr.B, X42-X70; ISO 11960, GOST, API 5CT J55 K55 N80-1 N80-Q L80-1 L80-9Cr P110, etc. |
|
Structural pipe
|
20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045.
|
|
Liquid pipe
|
20# q295b-e, q345b-e
|
|
Alloy pipe
|
4140, 42CrMo, 32CrMo, 15CrMo
|
|
Outer Diameter |
21~610mm |
|
Wall Thickness
|
1.5~75mm
|
|
Length
|
6m,12m, or as required
|
|
Delivery conditions
|
N-(normalizing); A-(annealing); T-(tempering); Q-(quenching); N+T; Q+T.etc
|
|
Processing
|
Galvanizing; cutting; making thread outside the pipe; Machining.
|
|
Ends
|
Flat end or beveled end, threaded end. Protected by plastic caps or steel rings
|
|
Packing
|
Black paint, Varnish painting, Tarpaulin packing
|
|
Standard export packaging, suitable for various modes of transportation,Or provided on request.
|
|
|
Pricing Term
|
FOB,CFR,CIF,
|
|
Payment term
|
TT, L/C, etc.
|
|
MOQ
|
1 Ton
|
Chemical Composition:
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
ASTM A210 |
A-1 |
≤0.27 |
≥0.10 |
≤0.93 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
C |
≤0.35 |
≥0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
Mechanical Properties:
|
Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
|
A-1 |
≥255 |
≥415 |
30 |
|
C |
≥275 |
≥485 |
30 |
Wall Thickness Tolerance:
|
ASME SA-210 |
OD |
WT |
WT Tolerance |
|
<=38.1 |
/ |
+20%,-0% |
|
|
>38.1 |
/ |
+20%,-0% |
Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Application:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
