Thick Wall A53 Hot Rolled Seamless Steel Tubes Thickness 3.91mm

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: E355 EN10297 A53 Q235 STPG42
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thick Wall O.D: 60.3mm-914.4mm Or As Required
W.T: 3.91mm-59.54mm Length: 5-12m As Per Customer's Requirements
Material: A53|A106 Grade B|Q235|Q345|34CrMo4|A106 Grade C Product Name: Hot Rolled Steel Tube|Seamless Steel Tubes
Section Shape: Round Standard: ASTM|DIN|EN|SAE|JIS|GOST
Surface Treatment: Varnish|Bare|Varnished Technique: Hot Rolled|Seamless|Cold Rolled
High Light:

Thick Wall Seamless Steel Tubes

,

3.91mm Steel Tube

,

A53 Seamless Steel Tubes


Product Description



E355 EN10297 A53 Q235 STPG42 Hot Rolled Steel Tube Thickness 3.91mm - 59.54mm





Our Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.

With good quality and competitive price, we believe we could be your reliable supplier.



Quick Detail



Standard: ASTM / DIN / EN / GOST / SAE / JIS etc

Process method: Hot rolled/ Hot expansion/ Cold drawn

Size: (mm)

O.D : 60.3mm-914.4mm

W.T : 3.91mm-59.54mm

Length: 5-12m as per customer's requirements

Material: A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.

(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)





Description



(1) Product Name : Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
(2) Brand :  WuXI SYLAITH

(3) Specification: O.D : 60.3mm-914.4mm  W.T : 3.91mm-59.54mm
(4) Standard :

ASTM A106-B ASTM A53-B API 5L-B

API 5L, X42, X52,  and 5CT ,J55 ,K55
SAE1020 ,SAE1045
JIS G4051, S20C ,S45C, JIS G3454, JIS 3454 ,STPG42
DIN 17175 ST 45-8, ST 52
(5) Tolerance: OD :+1% / -1%  WT: +12.5% / -10%
(6) Technics : hot rolled .or cold rolled
(7) Package: bundles,seaworthy wooden cases,container

(8) Ends:bevel or plain

(9) Coating: Internally bare, externally varnished



Specifications



Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.



Advantages
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed.

This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.



Regular Hot Rolled Pipe Sizes



(Or per customers’ requirements)



OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40



Applications



Transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc



Product Images

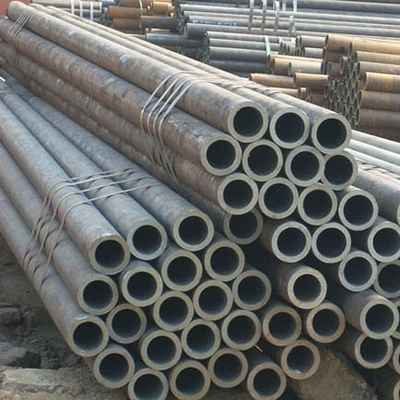

Thick Wall A53 Hot Rolled Seamless Steel Tubes Thickness 3.91mm 0



Product Application

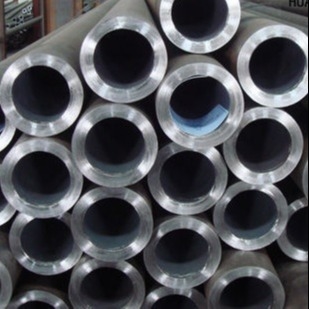

Custom OD 0.5 inch-10 inch Galvanized Steel Tube Seamless Round Pipe AISI Q345 Q235 20# 1



Packing&Shipping

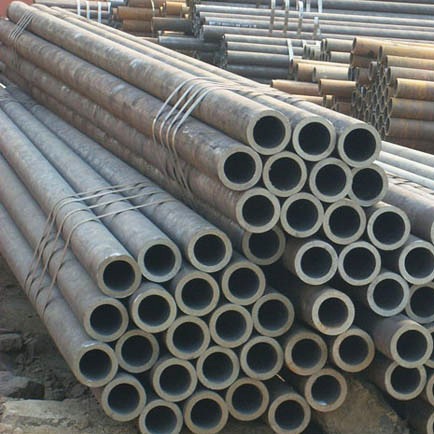

Thick Wall A53 Hot Rolled Seamless Steel Tubes Thickness 3.91mm 2
