DIN 1629 Petroleum Round Hot Rolled Seamless Steel Tube Varnished

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: St52 DIN1629 / DIN2448 JIS G4051 S20C
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3-10 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thick Wall Application: Oil|Gas|Fluid|Construction|Chemical|Petroleum|Traffic
Certificate: API|PED|BV|ISO|TUV Ends: Bevel|Plain
Material: A53|A106 Grade B|Q235|Q345|34CrMo4|A106 Grade C Product Name: Hot Rolled Steel Tube
Section Shape: Round Standard: ASTM|DIN|EN|SAE|JIS|GOST
Surface Treatment: Varnish|Bare|Varnished Technique: Hot Rolled|Seamless
High Light:

Varnished Hot Rolled Steel Tube

,

DIN 1629 Hot Rolled Steel Tube

,

Petroleum Seamless Steel Tube


Product Description



Petroleum Round Hot Rolled Seamless Steel Tube St52 DIN1629 / DIN2448 JIS G4051 S20C



Its Applications include transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc.



Quick Detail:



Standard: ASTM / DIN / EN / GOST / SAE / JIS etc

Process method: Hot rolled/ Hot expansion/ Cold drawn

Size: (mm)

O.D : 60.3mm-914.4mm

W.T : 3.91mm-59.54mm

Length: 5-12m as per customer's requirements

Material: A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.

(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)



Product Name Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
Specification O.D : 60.3mm-914.4mm W.T : 3.91mm-59.54mm
Standard

ASTM A106-B ASTM A53-B API 5L-B

API 5L, X42, X52, and 5CT ,J55 ,K55
SAE1020 ,SAE1045
JIS G4051, S20C ,S45C, JIS G3454, JIS 3454 ,STPG42
DIN 17175 ST 45-8, ST 52

Tolerance OD :+1% / -1% WT: +12.5% / -10%
Technique  hot rolled .or cold rolled
Package bundles,seaworthy wooden cases,container
Ends bevel or plain
Coating  Internally bare, externally varnished



Specifications:



Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.

Advantages :
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.



Regular Hot Rolled Pipe Sizes:



(Or per customers’ requirements)



OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40

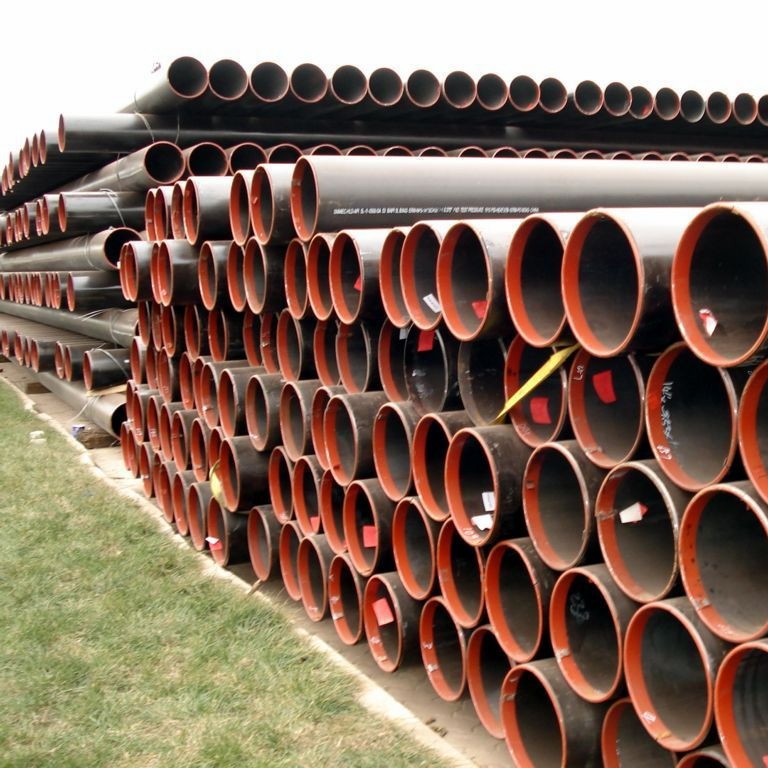

Product Photo

DIN 1629 Petroleum Round Hot Rolled Seamless Steel Tube Varnished 0



Factroy Pictures



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1



Pipe & Tube Processing



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2



Application



EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3

Packaging & Shippping



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5





Certificates



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6





FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade inorder to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time)
