Hot Rolled And Cold Drawn Galvanized Tube Carbon Steel Sealess ASTM A106B B36.10 A53B Pipe

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: 10#.20#.35#.Q235#.27SiMn#
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Alloy Or Not: Non-Alloy Special Pipe: Thick Wall Pipe
Thickness: 1 - 56 Mm Tolerance: ±1%
Length: 3-12m Surface Treatment: Pre Galvanized ,black,hot Steel
High Light:

carbon steel tubing

,

thin wall steel tube


Product Description



Hot Rolled And Cold Drawn Galvanized Tube Carbon Steel Sealess ASTM A106B B36.10 A53B Pipe



Carbon steel pipes are divided into hot-rolled and cold-rolled (drawn) steel pipes. The outer diameter of hot-rolled seamless pipe is generally greater than 32mm and the wall thickness is 2.5-75mm. The outer diameter of cold-rolled seamless pipe can be up to 6mm and the wall thickness can be up to 0.25mm. The outer diameter of thin-walled pipe can be up to 5mm and the wall thickness is less than 0.25mm. Cold rolling has higher dimensional accuracy than hot rolling.



Outside Diameter

(Inch)

Wall

thickness

(Inch)

Outside

Diameter

(mm)

Wall

thickness

(mm)

From 1/2 to 5 From SCH40 to XXS From 25 to 356 From4 to 80
Length From 2m to 12.5m in accordance with customers' requirements



Material

&

Standard

Description

Chisese American German
10# ASTM A53-A St37 DIN1626
ASTM A106-A St37-2 DIN17175
ASTM A179-C St35.8 DIN17175
ASTM A192 St35.8 DIN17175
20# ASTM A53-B St42-2 DIN1626
ASTM A106-B St45-8 DIN17175
ASTM A178-C St45-4 DIN1629
45# ASTM A1045 CK45
16Mn ASTM A210-C St52 DIN1629
37Mn5 J55
27SiMn
CrMo ASTM 4135,4150 CrMo4 DIN17212
40Cr ASTM 5140 41Cr4



Specifications:



Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.

Advantages :
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.



Regular Hot Rolled Pipe Sizes:



(Or per customers’ requirements)



OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40

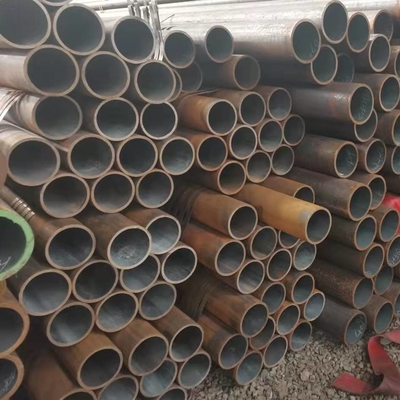

Product Photo



Hot Rolled And Cold Drawn Galvanized Tube Carbon Steel Sealess ASTM A106B B36.10 A53B Pipe 0



Packing & Delivery

Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 1



Our Factory



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 2



Certificates



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 3



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4:CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
