Hot Rolled Steel Tube
Created with Pixso.

API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer

API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer

Brand Name: WUXI SYLAITH
Model Number: API 5L / ASTM A106 GRB / A53 GRB
MOQ: 1 MT
Price: Negotiable
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Place of Origin:
Jiangsu China (Mainland)
Certification:
ISO9001 14001 BV TUV PED DNV etc
Section Shape:
Round
Outer Diameter:
300mm
Technique:
Cold Rolled Hot Rolled
Grade:
ASTM A53 A106GRB, Q195-Q345
Package:
Wooden Carton
Special Pipe:
API Pipe
Packaging Details:
Exporting package/wooden box package/Or per customers’ requirement
Supply Ability:
8000MT/Month
Highlight:

carbon steel tubing

,

cold rolled steel tube

Product Description



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer



Quick Detail:



Standard: ASTM / DIN / EN / GOST / SAE / JIS etc

Process method: Hot rolled/ Hot expansion/ Cold drawn

Size: (mm)

Length: 1-12m as per customer's requirements

Material: A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.

(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)



Description



keyword:
ASTM A106B A53 API 5L Seamless steel pipe
Standard:
ASTM, DIN, GB, JIS
Standard2:
ASTM A106-2006, ASTM A312M-2001, ASTM A312M-2007, ANSI A213M-2001, DIN 2391, DIN EN 10305, GB/T 3639-2000, GB/T 3093-2002, JIS
G3460-2006, JIS G3467-2006
Grade Group:
10#-45#, 16Mn, A53-A369, Cr-Mo alloy, Q195-Q345, ST35-ST52
Grade:
10#, 20#, 45#, 16Mn, A53(A,B), A106(B,C), 30CrMo, Q345, St37, St45, ST37.4, ST54
Thickness:
1 - 50 mm
Section Shape:
Round
Outer Diameter(Round):
6 - 500mm
Place of Origin:
Hebei, China
Application:
Hydraulic Pipe
Technique:
Cold Rolled
Certification:
ISO 9001-2008
Surface Treatment:
anti-rust oil
Special Pipe:
Thick Wall Pipe
Alloy Or Not:
Non-alloy
Secondary Or Not:
Non-secondary
Material:
carbon/alloy/stainless steel
Specification:
custom-made
Delivery:
within 7--15 days
Sample:
for free
Port:
TianjIn China
Property:
well-controlled
Length:
5.8m-12m
Ends:
Plastic cap
Supply Ability:
2000 Ton/Tons per Month for seamless steel pipe



Specifications



Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.

Advantages :
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.



Regular Hot Rolled Pipe Sizes



(Or per customers’ requirements)



OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40



Applications



Transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc





Competitive Advantage



Wuxi Silaishi Industry Pipe Making Corporation

Asia Leading Steel Pipe & Tube Manufacturer with more than 250,000Tons/Year, >60% shipped to more than 35 Countries.We aims at manufacturing quality pipes & tubes with reasonable and competitive price, good quality for our global customers.

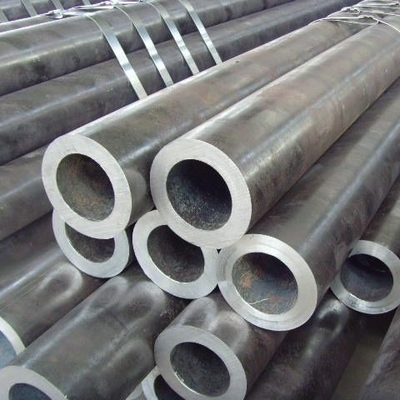

Product Photo



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 0

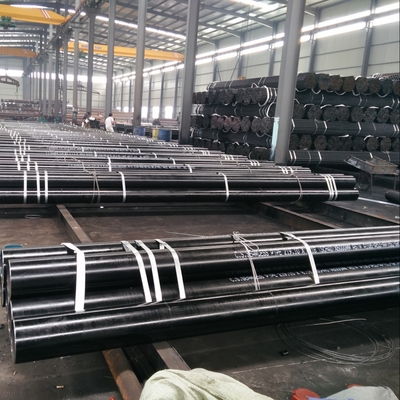

Factroy Pictures



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 1



Test



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 2



Factory Production Line



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 3



Steel Pipe & Tube Application



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 4



Certificate

API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 5



Packing & Delivery



API 5L / ASTM A106 GRB / A53 GRB SCH40 SCH80 Low Carbon Seamless Steel Pipe Professional Manufacturer 6



FAQ


Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.


Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.


Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.


Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
