| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | SGS ISO ROHS |
| Model Number: | E355 |
| Minimum Order Quantity: | 1 MT |
| Price: | Negotiation |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 25~35days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Features: | Thin Wall | Application: | Machinery|Automobile|Oil Cylinder Tube|Military|Railway Industry |
|---|---|---|---|
| Delivery Condition: | Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK | Grade: | E355 |
| Standard: | ASTM B633-07 | Surface Treatment: | Galvanized |
| Technique: | Seamless/ Cold Drawn | ||
| High Light: | Seamless Steel Tube,steel square tube |
||
ASTM B633-07 Annealed Galvanized Steel Tube With Thin Wall , Cold Drawing E355 Steel Pipe
Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube, good brightness
and antirust and antisepsis could improve after zinc coated.
| Standard | ASTM B633-07 |
| Material Grade | E355 |
| Out Dimension | 6mm – 350mm |
| Thick | 0.8mm - 30mm |
| Length | 1-24m |
| Package | Standard export seaworthy package,or as required. |
| Technique | Cold Drawn |
Description
Dimensions of the galvanized tubes for hydraulic and pneumatic lines:
Outside diameter ranges from 6 to 350 mm and the wall thickness ranges from 0.8 to 30 mm. Precision steel tubes are delivered according to EN 10305-4, DIN 2391-1, STN 42 6711 and 42 6712, ČSN 42 6711 and 42 6712.
Synopsis of Process Routing:
DIN highly accurate cold drawn bright seamless steel tube is used as the tube to be galvanized, the outer wall is electroplated, caps are covered at two ends of tube to prevent from the dust.
Length of the galvanized tubes
in diameter <= 16 mm >=6000 + 100 mm
in diameter >= 16 mm <=24000 + 50 mm
Tolerances of the zinc coated tubes
- tolerances of the outside diameter:
|
diameter between 4 - 30 mm |
±0,08 mm |
|
diameter between 35 - 38 mm |
±0,15 mm |
|
diameter above 42 mm |
±0,20 mm |
The Main Steel grades for the zinc coated tubes
E 235+N and E 355+N
St 30 Si / St 30 Al / St 35 / St37.4 / St45 / St 52 / St52.4 / E235, E255,E355
|
EN 10305-1/ EN 10305-4 / DIN 2391 |
|
|
Precision seamless tube and pipe with European&Germany standard |
|
|
Application: |
for Atuo;for machinery use; Oil cylinder tube; Motorcycle shock reducer steel tubes; Auto shock reducer inner cylinder. |
|
Size(mm): |
O.D.:6mm-350mm ; W.T.:1-30mm; L:max 24000 |
Grade and Chemical Composition(%)
|
Grade |
Chemical Composition(%): |
||||
|
C max |
Si max |
Mn |
P max |
S max |
|
|
E355 |
0.22 |
0.55 |
1.6 |
0.025 |
0.025 |
|
E235 |
0.17 |
0.35 |
1.2 |
0.025 |
0.025 |
|
E215 |
0.10 |
0.05 |
0.70 |
0.025 |
0.025
|
Mechanical Properties (Mpa)
|
Grade |
Yield strengtha Rehmin Mpa |
Tensile strengtha Rmmin Mpa |
Elongation A min % |
|
E215 |
215 |
290-430 |
30 |
|
E235 |
235 |
340-480 |
25 |
|
E355 |
355 |
490-630 |
22 |
Final supply conditions
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
Galvanized tube category and related standard:
|
Galvanized tube category and related standard |
|||
|
Galvanized tube category |
Related Standard |
Zinc coating thickness |
Salt spray test |
|
Gr3+ Galvanized tube with blue and white zinc |
ASTM B633-07 |
5-25um |
24--72 hours without white rust;48--168 hours without red rust |
|
Gr3+ Galvanized tube with color zinc |
ASTM B633-07 |
5-25um |
48--96 hours without white rust;48--240 hours without red rust |
|
Gr6+ Galvanized tube with color zinc |
ASTM B633-98 |
5-25um |
24--96 hours without white rust;48--124 hours without red rust |
Applications
Zinc coated precision steel tubes (galvanized tubes) are destined for hydraulic and pneumatic pressure distribution (so called HPL tubes),
production of automobile components, utility vehicles as well as for production of machine products such as fittings and joints.
Cold drawn precision tubes are used as the semi-finished product and they are made from rolled seamless tubes.
Precision tubes HPL types are made from carbon and alloyed steel.
Application areas
Automotive, military, railway industry, with high requirement of the tubes brightness, cleanness, antirust, and antisepsis.

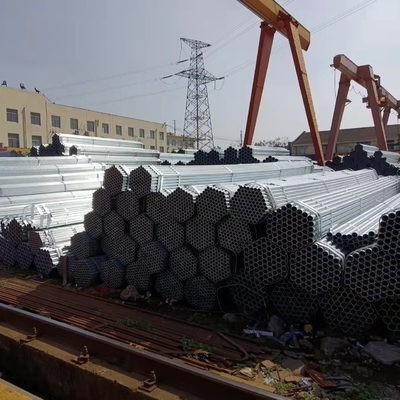

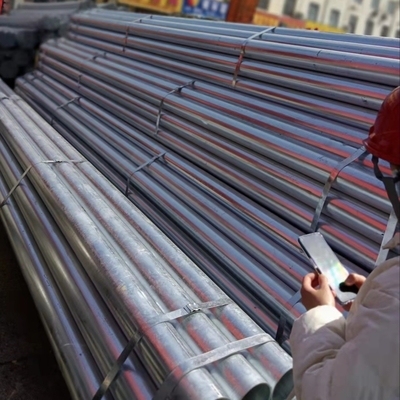

Product Photo
Factroy Pictures
Pipe & Tube Processing
Application
Packaging & Shippping
Certificates
