ASTM A210 ASME SA210 A1 Varnished Seamless Steel Tubes GB5310 20G 15MoG 12CrMoG
Product Details
| Application: | Fluid Pipe | Delivery Condition: | Annealed, Normalized, Tempered,Heat Treatment |
|---|---|---|---|
| Ends Type: | Plain Ends | Material: | Carbon Steel |
| Section Shape: | Round | Standard: | ASME SA210 A1|ASTM A210 |
| Surface Treatment: | Oil-di,Varnish, Phosphating, Galvanized | Technique: | Seamless|Hot Rolled|Cold Drawn|Weld |
| Highlight |
seamless stainless steel tube,round steel tubes |
||
Product Description
ASTM A210 ASME SA210 A1 Varnished Seamless Steel Tubes GB5310 20G 15MoG 12CrMoG
Application: For high, middle, low pressure boiler and pressure purpose
|
Product Name
|
Seamless carbon steel pipe tube
|
|
Material
|
Carbon Steel and Alloy Steel
|
|
Surface
|
Oiled, Polished, Brightness, Metallic color
|
|
Production Standard, Grade, Steel No |
ASTM A178 Grade A, C, D ASTM A179 Grade A, C, D ASTM A192 ASTM A210 GradeA-1, C BS3059-Ⅰ 320 CFS BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2 EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2 EN10216-2 P195GH, P235GH, P265GH, TC1, TC2 DIN17175 ST35.8, ST45.8 DIN1629 ST37.0, ST44.0, ST50.0 JIS G3454 STPG370, STPG410 JIS G3461 STB340, STB410, STB440 GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB GB9948 10, 20, 12CrMo, 15CMo GB3087 10, 20 and so on |
|
Grade
|
St35,St45,St52,E215,E235,E355,
sch10,sch20,A106,A179,A192,A210,T11,T22,
T12,AISI4130,SAE1010,SAE1020.etc
|
|
Craft
|
Cold rolled and Cold drawn
|
|
Size
|
OD:8mm-100mm,WT:1-8mm
|
|
Length
|
Customized
|
|
Tolerance
|
Cold drawn pipe: +/-0.1mmCold rolled pipe: +/-0.05mm
|
|
Used
|
Gas spring, Shock absorber, Cylinder and other high precision area
|
|
Delivery Condition
|
BK, BKW, BKS, GBK, NBK
|
| Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Inspection and Test |
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test. |
Detailed Product Description
|
Tube Sizes for Heat Exchangers & Condensers & Boiler |
|||||||||||
|
Outside Diameter |
|
BWG |
|||||||||
|
25 |
22 |
20 |
18 |
16 |
14 |
12 |
10 |
||||
|
|
Wall Thickness mm |
||||||||||
|
0.508 |
0.71 |
0.89 |
1.24 |
1.65 |
2.11 |
2.77 |
3.40 |
||||
|
mm |
inch |
|
Weight kg/m |
||||||||
|
6.35 |
1/4 |
0.081 |
0.109 |
0.133 |
0.174 |
0.212 |
|
|
|
||
|
9.53 |
3/8 |
0.126 |
0.157 |
0.193 |
0.257 |
0.356 |
0.429 |
|
|
||
|
12.7 |
1/2 |
|
0.214 |
0.263 |
0.356 |
0.457 |
0.612 |
0.754 |
|
||
|
15.88 |
5/8 |
|
0.271 |
0.334 |
0.455 |
0.588 |
0.796 |
0.995 |
|
||
|
19.05 |
3/4 |
|
0.327 |
0.405 |
0.553 |
0.729 |
0.895 |
1.236 |
|
||
|
25.4 |
1 |
|
0.44 |
0.546 |
0.75 |
0.981 |
1.234 |
1.574 |
2.05 |
||
|
31.75 |
1 1/4 |
|
0.554 |
0.688 |
0.947 |
1.244 |
1.574 |
2.014 |
2.641 |
||
|
38.1 |
1 1/2 |
|
0.667 |
0.832 |
1.144 |
1.514 |
1.904 |
2.454 |
3.233 |
||
|
44.5 |
1 3/4 |
|
|
|
1.342 |
1.774 |
2.244 |
2.894 |
3.5 |
||
|
50.8 |
2 |
|
|
|
1.549 |
2.034 |
2.574 |
3.334 |
4.03 |
||
|
63.5 |
2 1/2 |
|
|
|
1.949 |
2.554 |
3.244 |
4.214 |
5.13 |
||
|
76.2 |
3 |
|
|
|
2.345 |
3.084 |
3.914 |
5.094 |
6.19 |
||
|
88.9 |
3 1/2 |
|
|
|
2.729 |
3.609 |
4.584 |
5.974 |
7.27 |
||
|
101.6 |
4 |
|
|
|
|
4.134 |
5.254 |
6.854 |
8.35 |
||
|
114.3 |
4 1/2 |
|
|
|
|
4.654 |
5.924 |
7.734 |
9.43 |
||
|
Form of Tube: Straight & U-bend & Finned & Coiled |
|||||||||||
|
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. |
|||||||||||
|
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214 |
|||||||||||

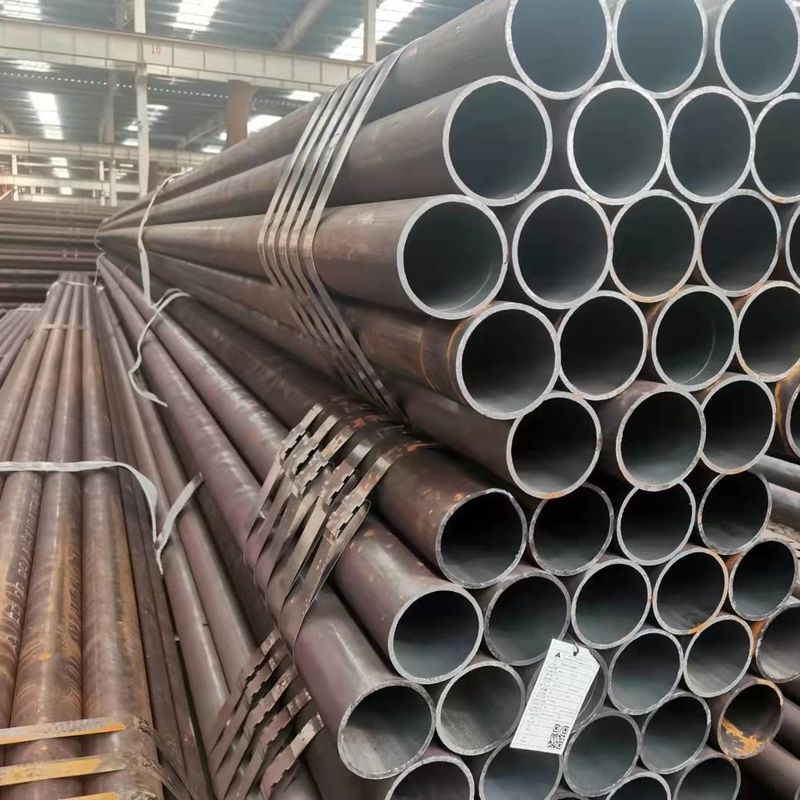

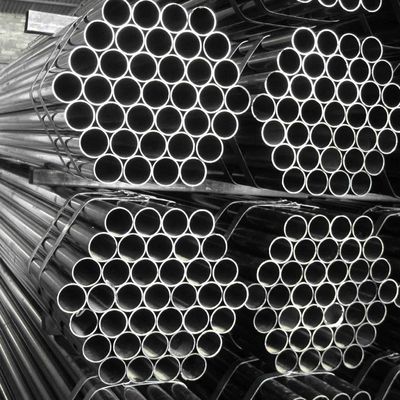

Product Photo
Factroy Pictures
Quality Control
Steel Pipe & Tube Application
Steel pipes have a hollow section and are used in large quantities as pipelines for conveying fluids, such as pipelines for conveying oil, natural gas, gas, water and certain solid materials. Compared with solid steel such as round steel, steel pipe has the same bending and torsion strength and lighter weight. It is a kind of economical cross-section steel, which is widely used in the manufacture of structural parts and mechanical parts, such as oil drill pipes, automobile transmission shafts, Bicycle racks and steel scaffolding used in construction.
Packing & Delivery
Main Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
