ASTM A192 ASME SA192 Seamless Carbon Steel Boiler Tube DIN17175 ST35.8 ST45.8
ASTM A192 American standard steel pipe products are suitable for evaporation pipe of waste heat boiler in petrochemical plant, gas inlet temperature up to 518℃, outlet temperature up to 200℃, ASTM A192 is seamless carbon steel boiler pipe for high pressure, and is completely equivalent to ASME SA-192 STANDARD steel pipe, similar to GB/T5310 20G standard steel pipe in China.
1 | Standard | SA192 Boiler Seamless Steel Pipe/asme sa192 boiler tube |
2 | Material |
1. 10#, 20#, Q235B, Q345B, 45# 2. A106 GR.A, B; A53 GR.A,B; A179, A192,A333 GR.6 |
3 | Type: | Seamless |
4 | Technique: | Hot rolled & Cold drawn |
5 | OD: | (1) Hot rolled: 32-600mm (ND: 1''-24'') |
(2) Cold drawn: 6-200mm (ND: 1/8''-8'') | ||
6 | WT: | (1) Hot rolled: 2.5-75mm |
(2) Cold drawn: min thickness 0.25mm | ||
7 | Length: | Fixed length ( expensive), DRL length ( cheap) |
8 | Surface treatment: | (1) Varnish / Oil (red & black) painting, |
(2) Zinc coated (hot dipped galvanized) | ||
(3) Anti-corrosion powder coating, 2PP/2PE, 3PP/3PE, FBE (Brand: 3M, DoPont). | ||
9 | Usage: | Above 450° high temperature |
10 | Application: | (1) Seamless steel line pipe transporte oil & gas in petroleum industry |
(2) Convey high temperature fluid in the fertilizer machine | ||
(3) Boiler pipe, including over-heat pipe, boiling water pipe, locomotive smoke pipe (big & small) | ||
(4) Heat-exchange pipe for refinery |
Mechanical Property
Standard |
Grade |
Tensile Strength (MPa) |
Yield strength(MPa) |
Elongation (%) |
ASTM A192/ASMESA192 | A192/SA192 | ≥325 | ≥180 | ≥35 |
Chemical Composition
Standard
|
Grade |
chemical composition |
|||||||||
C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
ASTM A192/ASME SA192 | A192 / SA192 | 0.06~0.18 | ≤0.25 | 0.27~0.63 | ≤0.035 | ≤0.035 | / | / | / | / |
Tube Sizes for Heat Exchangers & Condensers & Boiler
Tube Sizes for Heat Exchangers & Condensers & Boiler |
|||||||||||
Outside Diameter |
|
BWG |
|||||||||
25 |
22 |
20 |
18 |
16 |
14 |
12 |
10 |
||||
|
Wall Thickness mm |
||||||||||
0.508 |
0.71 |
0.89 |
1.24 |
1.65 |
2.11 |
2.77 |
3.40 |
||||
mm |
inch |
|
Weight kg/m |
||||||||
6.35 |
1/4 |
0.081 |
0.109 |
0.133 |
0.174 |
0.212 |
|
|
|
||
9.53 |
3/8 |
0.126 |
0.157 |
0.193 |
0.257 |
0.356 |
0.429 |
|
|
||
12.7 |
1/2 |
|
0.214 |
0.263 |
0.356 |
0.457 |
0.612 |
0.754 |
|
||
15.88 |
5/8 |
|
0.271 |
0.334 |
0.455 |
0.588 |
0.796 |
0.995 |
|
||
19.05 |
3/4 |
|
0.327 |
0.405 |
0.553 |
0.729 |
0.895 |
1.236 |
|
||
25.4 |
1 |
|
0.44 |
0.546 |
0.75 |
0.981 |
1.234 |
1.574 |
2.05 |
||
31.75 |
1 1/4 |
|
0.554 |
0.688 |
0.947 |
1.244 |
1.574 |
2.014 |
2.641 |
||
38.1 |
1 1/2 |
|
0.667 |
0.832 |
1.144 |
1.514 |
1.904 |
2.454 |
3.233 |
||
44.5 |
1 3/4 |
|
|
|
1.342 |
1.774 |
2.244 |
2.894 |
3.5 |
||
50.8 |
2 |
|
|
|
1.549 |
2.034 |
2.574 |
3.334 |
4.03 |
||
63.5 |
2 1/2 |
|
|
|
1.949 |
2.554 |
3.244 |
4.214 |
5.13 |
||
76.2 |
3 |
|
|
|
2.345 |
3.084 |
3.914 |
5.094 |
6.19 |
||
88.9 |
3 1/2 |
|
|
|
2.729 |
3.609 |
4.584 |
5.974 |
7.27 |
||
101.6 |
4 |
|
|
|
|
4.134 |
5.254 |
6.854 |
8.35 |
||
114.3 |
4 1/2 |
|
|
|
|
4.654 |
5.924 |
7.734 |
9.43 |
||
Form of Tube: Straight & U-bend & Finned & Coiled |
|||||||||||
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. |
|||||||||||
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214 |

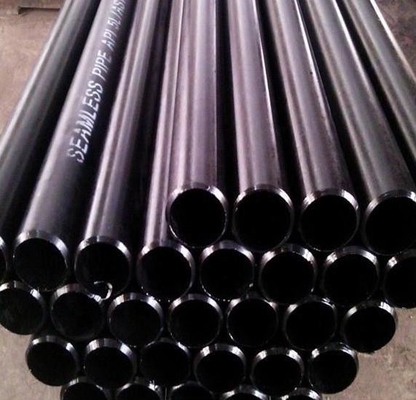

Product Photo
Factroy Picture
Factory Equipments Test
Steel Pipe & Tube Application
Packing & Delivery
Main Certificates
