ASME SA213 - 2004M T22 T23 Austenitic Seamless Alloy Steel Tubes 34Mn2V 35CrMn
Product Description:
ER80S-B2L welding wire is used for welding preheating of seamless steel pipe. See the chemical composition and mechanical properties of welding wire and electrode. The test piece welded by scheme I shall be subjected to local high temperature tempering treatment after welding. The aluminum silicate cotton layer is used for insulation, the thickness of the insulation layer is 50mm, and the temperature is controlled by DJK-A type electric heater automatic temperature controller 15crmog seamless steel pipe.
|
Size
|
OD
|
6 - 760 mm or Customized
|
|
Wall Thickness
|
1 - 80 mm or Customized
SCH20,SCH40,STD,XS,SCH80,SCH160,XXS |
|
|
Length
|
5.8M Length, 6M Length or 12M Length or as requested
|
|
|
Steel material
|
34Mn2V 35CrMn
|
|
|
Standard
|
ASME SA213 - 2004M, etc
|
|
|
Usage
|
1)low pressure liquid, water, gas, oil, line pipe
2)construction 3)fence, door pipe |
|
|
Ends
|
1) Plain
2) Beveled 3) Thread with Coupling or cap 4) Chamfer 5) Groove 6) Screw |
|
|
End protector
|
1) Plastic pipe cap
2) steel socket |
|
|
Surface Treatment
|
1) Bared
2) Black Painted (varnish coating) 3) hot dipped Galvanized 4) Oiled 5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating. |
|
|
Technique
|
cold drawn, hot rolled, welded
|
|
|
Section Shape
|
Round
|
|
|
Inspection
|
With Hydraulic Testing, Eddy Current , Infrared Test
|
|
|
Port of Shipment
|
Shinghai, China
|
|
|
Date of Delivery
|
7-10 days after confirmation or According To The Quantity And Specification Of Each Order
|
|
Chemical Composition(％):
|
Grade |
C |
Mn |
P≤ |
S≤ |
Si |
Cr |
Mo |
V≥ |
|
T11 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50-1.00 |
0.50-1.00 |
1.00-1.50 |
|
|
T12 |
0.05-0.15 |
0.30-0.61 |
0.025 |
0.025 |
≤0.50 |
0.80-1.25 |
0.44-0.65 |
|
|
T13 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T2 |
0.10-0.20 |
0.30-0.61 |
0.025 |
0.025 |
0.10-0.30 |
0.50-0.81 |
0.44-0.65 |
|
|
T5 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T5b |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
1.00-2.00 |
4.00-6.00 |
0.45-0.65 |
|
|
T5c |
≤0.12 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T9 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.00 |
0.9-1.0 |
|
|
T22 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T91 |
0.08-0.12 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.85-1.05 |
0.18-0.25 |
|
T92 |
0.07-0.13 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.3-0.60 |
0.15-0.25 |
|
T21 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
2.65-3.35 |
0.80-1.06 |
|
Mechanical Properties:
| Mechanical Properties | ||||||
| Grade | Tensile strength(MPa) | Yield strength(MPa) | Elongation(%) | Impact energy(J) | Hardness | |
| P11 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P12 | ≥ 415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P22 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P5 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 187HB | |
| P91 | 585~760 | ≥ 415 | ≥ 20 | ≥ 35 | ≤ 250HB | |
| P92 | ≥ 620 | ≥ 440 | ≥ 20 | ≥ 35 | 250HB | |

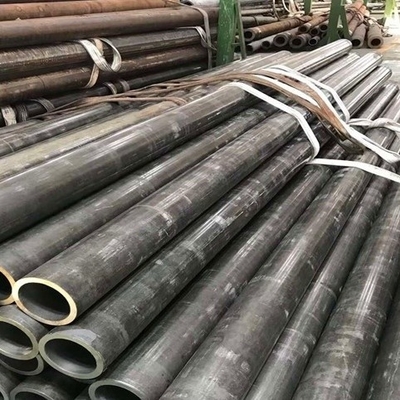

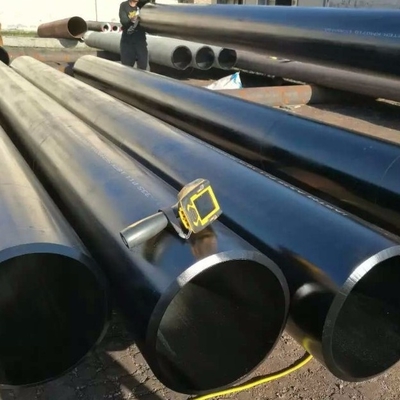

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Application:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
