1/2 * SCH40 08μm RA 0.8 Tolerance Seamless Steel Hydraulic Tube For Chemical Power
Product Details
| Maximum Stroke: | 3200mm | Inner Tube Diameter: | 250mm |
|---|---|---|---|
| Rod Diameter: | 3200mm | Outer Tube Diameter: | 6-325mm |
| Alloy Or Not: | Non-Alloy | Tolerance: | ±1% |
| Keyword: | Steel Pipe | Material: | 10#.20# |
| Highlight |
seamless stainless steel tube,Seamless Steel Tubing |
||
Product Description
1/2 * SCH40 08μm RA 0.8 Tolerance Seamless Steel Hydraulic Tube For Chemical Power
Product Description:
Advantages of hydraulics
Compared with mechanical transmission and electrical transmission, hydraulic transmission has the following advantages:
1. Various components of hydraulic transmission can be arranged conveniently and flexibly according to needs.
2, light weight, small size, small motion inertia, fast response.
3. It is easy to operate and control, and can realize a wide range of stepless speed regulation (speed regulation range reaches 2000:1).
4. It can automatically realize overload protection.
|
Standard
|
DIN2391, EN10305, ASTM A519, GB/T 3639-200
|
|||
|
Material
|
Q345B Q355D C20,ST52,E355 SAE1026.CK45 4130 4140 STKM 13C
|
|||
|
Heat treatment
|
BK+S
|
|||
|
Specification
|
Outer diameter(mm)
|
Inner diameter(mm)
|
||
|
|
6-325mm
|
30-400mm
|
||
|
I.D Tolerance
|
H8-H9
|
|||
|
Length
|
Fixed Length, Random Length(3--9m)or as requests of customers
|
|||
|
Straightness
|
0.3/1000
|
|||
|
ID roughness
|
RA 0.1-0.8micron(max)
|
|||
|
Technology
|
Honed & SRB(SKIVED AND ROLLER BURNISHED )
|
|||
|
Scope
|
Honed tube for hydraulic cylinder, swivel crane, injection machine
|
|||
Chemical Composition:
|
Steel Grade
|
C
|
SI
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Cu
|
|
20#
|
0.17-0.24
|
0.17-0.37
|
0.35-0.65
|
0.035
|
0.035
|
0.250
|
0.250
|
/
|
|
45#
|
0.42-0.50
|
0.17-0.37
|
0.50-0.80
|
0.035
|
0.035
|
0.250
|
0.300
|
/
|
|
Q345B
|
≤0.2
|
≤0.5
|
1.00-1.60
|
0.030
|
0.030
|
0.300
|
0.250
|
0.08
|
|
Q345D
|
≤0.2
|
≤0.5
|
1.00-1.60
|
0.030
|
0.030
|
0.250
|
0.250
|
0.15
|
|
25Mn
|
0.22-0.29
|
0.17-0.37
|
0.70-1.00
|
0.035
|
0.035
|
/
|
/
|
/
|
|
27SiMn
|
0.22-0.32
|
1.10-1.40
|
1.10-1.40
|
0.035
|
0.035
|
0.300
|
0.300
|
/
|
|
E355
|
≤0.2
|
≤0.55
|
≤1.6
|
0.025
|
0.025
|
0.250
|
0.250
|
/
|
|
SAE1026
|
0.22-0.28
|
0.15-0.35
|
0.60-0.90
|
0.040
|
0.050
|
/
|
/
|
/
|
Mechancial Properties:
|
Steel Grade
|
Rm Mpa
|
ReH Mpa
|
Elonggation
|
cold finished Rm Mpa
|
cold finished Elonggation
|
|
20#
|
≥520
|
≥375
|
≥15
|
≥550
|
≥8
|
|
45#
|
≥600
|
≥520
|
≥10
|
≥640
|
≥5
|
|
16Mn(Q345B /D)
|
≥600
|
≥520
|
≥14
|
≥640
|
≥5
|
|
25Mn
|
≥600
|
≥510
|
≥15
|
≥640
|
≥5
|
|
27SiMn
|
≥760
|
≥610
|
≥10
|
≥800
|
≥5
|
|
St45
|
≥520
|
≥375
|
≥15
|
≥550
|
≥5
|
|
E355(st52)
|
≥600
|
≥520
|
≥14
|
≥640
|
≥5
|
|
SAE1026
|
≥600
|
≥510
|
≥15
|
≥640
|
≥5
|

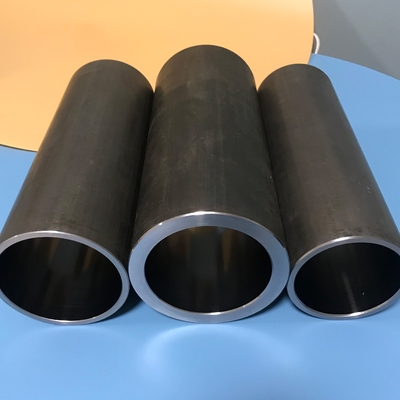

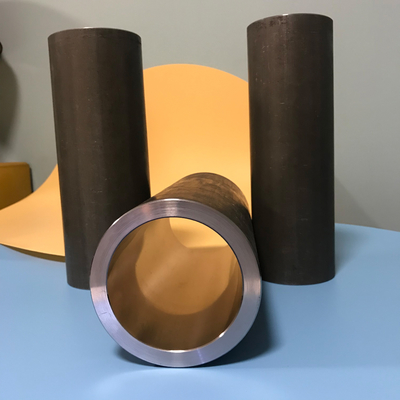

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Application:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
