ASTM A653 150 Mm Galvanized Steel Tube Aerospace Industry Rectangular Seamless

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: JIS G3302,JIS G3312,EN10142,ASTM A653M;etc
Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~10 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Grade: JIS G3302, JIS G3312, EN10142, ASTM A653M, Etc Surface Treatment: Galvanized
Section Shape: Round, Rectangluar, Square Length: 6000mm 5800mm 12000mm Or Customized
OD: 10 - 1020mm Or Customized Thickness: 0.5 - 150mm Or Customized
Processing Service: Welding, Punching, Cutting, Bending, Decoiling Type: Seamless Steel Pipe
Oiled Or Non-oiled: Non-oiled Technique: Cold Rolled
High Light:

ASTM A653 Galvanized Steel Tube

,

150 mm Galvanized Steel Tube

,

Galvanized Seamless Steel Tube


Product Description



0.5 - 150 mm Thick for Aerospace Industry Galvanized Steel Tube ASTM A653 Rectangular Customized Seamless



Product Description



Hot-dip galvanized steel pipes are widely used in construction, machinery, coal mines, chemicals, electric power, railway vehicles, automobile industry, highways, bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery, greenhouse construction and other manufacturing industries.
Galvanized steel pipe is a welded steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles, supporting frames for mine tunnels, etc.





Item Galvanized Steel Tube
OD 10 - 1020 mm or customized
Thickness 0.5 - 150 mm or customized
Length 6000mm 5800mm 12000mm or customized
Standard GB,ASTM,BS,EN,JIS
Material Chinese Grade, Q195, Q215 Q235, Q345
ASTM, Grade B,Grade C,Grade D,Grade 50
EN, S185,S235JR,S235JO,E335,S355JR,S355J2
JIS, SS330,SS400,SPFC590
Application Used For Water, Gas, Stream, Combustible Fluids And Other Liquid Delivery
Ends
Plain, Beveled, Thread With Couplings Or Sockets;
Plastic Caps And Steel Rings Can Be Provided If Possible
Surface Bared, Galvanized, Oiled, Color Paint, 3PE; Or Other Anti-corrosive Treatment
Technique Hot Rolled Or Cold Rolled ERW
Package Covered With Tarpaulin, Containers Or In Bulk




Main Features:

Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube, good brightness and antirust and antisepsis could improve after zinc coated.


Length of the galvanized tubes:

in diameter <= 16 mm  >=6000 + 100 mm
in diameter >= 16 mm  <=24000 + 50 mm



Tolerances of the zinc coated tubes:



-tolerances of the outside diameter:

diameter between 4 - 30 mm

±0,08 mm

diameter between 35 - 38 mm

±0,15 mm

diameter above 42 mm

±0,20 mm



-tolerances of the inside diameter are according to EN 10305-4

-tolerance of the wall thickness ± 10%





Product Detail

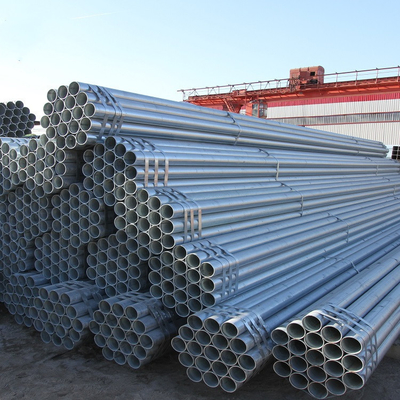

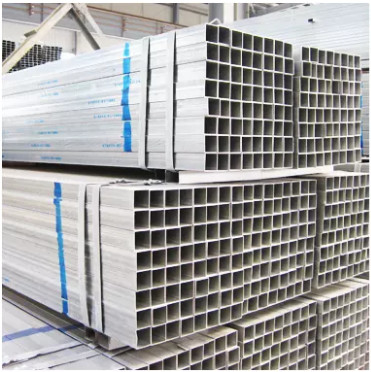

ASTM A653 150 Mm Galvanized Steel Tube Aerospace Industry Rectangular Seamless 0

ASTM A653 150 Mm Galvanized Steel Tube Aerospace Industry Rectangular Seamless 1





Factroy Pictures



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1





Pipe & Tube Processing



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2



Application



EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3





Packaging & Shippping



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5





Certificates

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time)
