ASTM A192 ASME SA192 Seamless Carbon Steel Boiler Tube for Boiler Water Wall
Product Introduction
Used in the manufacture of boiler water wall, economizer, reheater and steam pipe.
| Standard | SA192 Boiler Seamless Steel Pipe/asme sa192 boiler tube |
| Material |
1. 10#, 20#, Q235B, Q345B, 45# 2. A106 GR.A, B; A53 GR.A,B; A179, A192,A333 GR.6 |
| Type: | Seamless |
| Technique: | Hot rolled & Cold drawn |
| Surface treatment: | (1) Varnish / Oil (red & black) painting, |
| (2) Zinc coated (hot dipped galvanized) | |
| (3) Anti-corrosion powder coating, 2PP/2PE, 3PP/3PE, FBE (Brand: 3M, DoPont). | |
| Usage: | Above 450° high temperature |
| Application: | (1) Seamless steel line pipe transporte oil & gas in petroleum industry |
| (2) Convey high temperature fluid in the fertilizer machine | |
| (3) Boiler pipe, including over-heat pipe, boiling water pipe, locomotive smoke pipe (big & small) | |
| (4) Heat-exchange pipe for refinery |
Mechanical Property
|
Standard |
Grade |
Tensile Strength (MPa) |
Yield strength(MPa) |
Elongation (%) |
| ASTM A192/ASMESA192 | A192/SA192 | ≥325 | ≥180 | ≥35 |
Chemical Composition
|
Standard
|
Grade |
chemical composition |
|||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A192/ASME SA192 | A192 / SA192 | 0.06～0.18 | ≤0.25 | 0.27～0.63 | ≤0.035 | ≤0.035 | / | / | / | / | |
Tube Sizes for Heat Exchangers & Condensers & Boiler
|
Tube Sizes for Heat Exchangers & Condensers & Boiler |
|||||||||||
|
Outside Diameter |
|
BWG |
|||||||||
|
25 |
22 |
20 |
18 |
16 |
14 |
12 |
10 |
||||
|
|
Wall Thickness mm |
||||||||||
|
0.508 |
0.71 |
0.89 |
1.24 |
1.65 |
2.11 |
2.77 |
3.40 |
||||
|
mm |
inch |
|
Weight kg/m |
||||||||
|
6.35 |
1/4 |
0.081 |
0.109 |
0.133 |
0.174 |
0.212 |
|
|
|
||
|
9.53 |
3/8 |
0.126 |
0.157 |
0.193 |
0.257 |
0.356 |
0.429 |
|
|
||
|
12.7 |
1/2 |
|
0.214 |
0.263 |
0.356 |
0.457 |
0.612 |
0.754 |
|
||
|
15.88 |
5/8 |
|
0.271 |
0.334 |
0.455 |
0.588 |
0.796 |
0.995 |
|
||
|
19.05 |
3/4 |
|
0.327 |
0.405 |
0.553 |
0.729 |
0.895 |
1.236 |
|
||
|
25.4 |
1 |
|
0.44 |
0.546 |
0.75 |
0.981 |
1.234 |
1.574 |
2.05 |
||
|
31.75 |
1 1/4 |
|
0.554 |
0.688 |
0.947 |
1.244 |
1.574 |
2.014 |
2.641 |
||
|
38.1 |
1 1/2 |
|
0.667 |
0.832 |
1.144 |
1.514 |
1.904 |
2.454 |
3.233 |
||
|
44.5 |
1 3/4 |
|
|
|
1.342 |
1.774 |
2.244 |
2.894 |
3.5 |
||
|
50.8 |
2 |
|
|
|
1.549 |
2.034 |
2.574 |
3.334 |
4.03 |
||
|
63.5 |
2 1/2 |
|
|
|
1.949 |
2.554 |
3.244 |
4.214 |
5.13 |
||
|
76.2 |
3 |
|
|
|
2.345 |
3.084 |
3.914 |
5.094 |
6.19 |
||
|
88.9 |
3 1/2 |
|
|
|
2.729 |
3.609 |
4.584 |
5.974 |
7.27 |
||
|
101.6 |
4 |
|
|
|
|
4.134 |
5.254 |
6.854 |
8.35 |
||
|
114.3 |
4 1/2 |
|
|
|
|
4.654 |
5.924 |
7.734 |
9.43 |
||
|
Form of Tube: Straight & U-bend & Finned & Coiled |
|||||||||||
|
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. |
|||||||||||
|
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214 |
|||||||||||

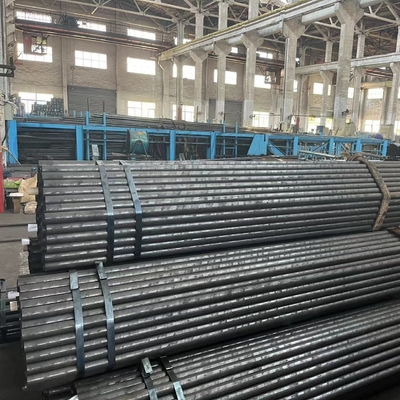

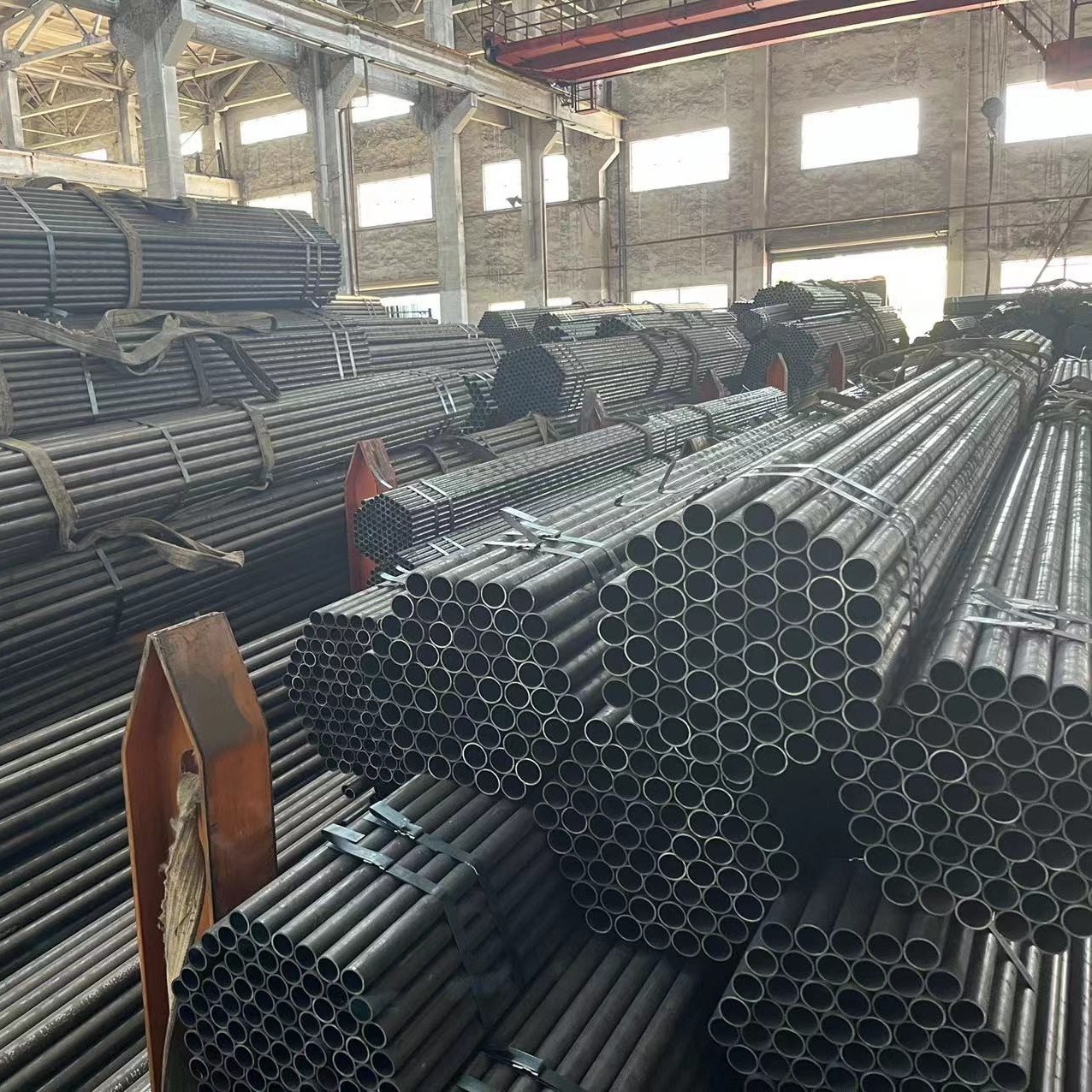

Product Photo
Factroy Picture
Factory Equipments Test
Steel Pipe & Tube Application
Packing & Delivery
Main Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
