SAE52100 UNS G52986 Bearing Steel Tube Round Customized Sizes

Basic Information
Place of Origin: China
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: SAE52100 AISI E52100 UNS G52986 GCr15
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: T/T, L/C
Supply Ability: 1000 TONS PER MONTH
Detail Information
Shape: Round Tolerance: ±1%
Out Diameter: 35 - 280 Mm Or As Required Length: 1-12M Or Customized
Wall Thickness: 5 - 20 Mm Or Customized Material: SAE52100 AISI E52100 UNS G52986 GCr15
High Light:

SAE52100 Bearing Steel Tube

,

Customized Weld Bearing Steel Tube Round

,

280 mm Bearing Steel Tube


Product Description

SAE52100  AISI E52100  UNS G52986 Round Bearing Steel Tube Customized Sizes

It is recommended to make all kinds of bearing rings with wall thickness ≤12mm and outer diameter ≤250mm, steel ball diameter ≤50mm, cone, spherical roller diameter ≤22mm and needle rollers of all sizes; Can also be used for manufacturing measuring tools, molds, woodworking tools, internal combustion engines, electric locomotives, machine tools, tractors, rolling equipment, drilling machines, railway vehicles and mining machinery and other driving shaft on the steel ball, roller and shaft sleeve.



Product Details

Product Name
SAE52100,AISI E52100,UNS G52986 Round Bearing Steel Tube Customized Sizes
Steel Grade
SAE52100 AISI E52100 UNS G52986 GCr15
Model Number
15*15mm-400*600mm or custom made
Length
1-12M or Customized
Tolerance
±1%
Processing Service
Welding, Punching, Cutting, Bending, Decoiling
Delivery Time
Usually within 7 days, the time depends on the number of products.
Samples
Can provide samples
Application
Widely used in furniture,interior decoration, fluid pipeline, petroleum and natural gas industry, drilling, pipeline, structure



Relevant Steel Specification of 100Cr6 Bearing Steel

Country USA German Japan British
Standard ASTM A295 DIN 17230 JIS G4805 BS 970
Grades 52100 100Cr6/1.3505 SUJ2 535A99/EN31



Chemical Composition of 100Cr6 Bearing Steel and Equivalents

Standard Grade C Mn P S Si Ni Cr Cu Mo
ASTM A295 52100 0.93-1.05 0.25-0.45 0.025 0.015 0.15-0.35 0.25 1.35-1.60 0.30 0.10
DIN 17230 100Cr6/1.3505 0.90-1.05 0.25-0.45 0.030 0.025 0.15-0.35 0.30 1.35-1.65 0.30
JIS G4805 SUJ2 0.95-1.10 0.50 0.025 0.025 0.15-0.35 1.30-1.60
BS 970 535A99/EN31 0.95-1.10 0.40-0.70 0.10-0.35 1.20-1.60

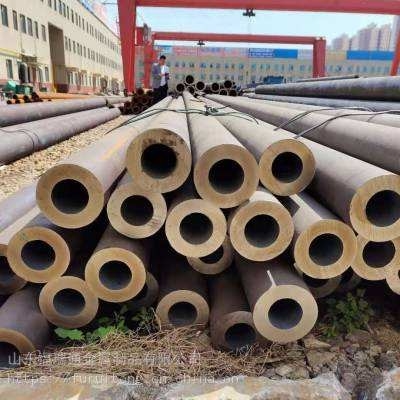

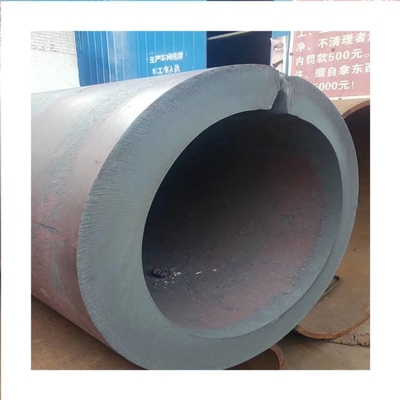

Product Photo

SAE52100 UNS G52986 Bearing Steel Tube Round Customized Sizes 0





Packing & Delivery

SAE52100 UNS G52986 Bearing Steel Tube Round Customized Sizes 1

Packing Details:

- Packing in bundles
- Packing in wooden cases
- Bulk shipment, without packing
- Export standard package, or as customers request.


Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)


Delivery Details :

7-15 days, or according to the order quantity or upon negotiation.





Our Factory



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 2



Company profile

WUXI SYLAITH Steel Co., Ltd. specializes in one-stop service of stainless steel production, processing and distribution. The company specializes in the sales and processing of stainless steel, and has established long-term and stable cooperative relations with many well-known steel plants such as Shanxi Taiyuan Iron and Steel, Pohang Iron and Steel, and Jiuquan Iron and Steel. The company mainly deals in 304, 304L, 309S, 310S, 316L, 321, 2205, 253MA and other high-corrosion-resistant alloy steel, high-temperature stainless steel duplex stainless steel series stainless steel materials. At the same time, the company can order special materials produced by Taiyuan Iron and Steel Co., Ltd., with diverse varieties, complete specifications, and diversified futures and spot cooperation.

Since its establishment, the company has always regarded product quality as the foundation of business survival and service quality as a bridge to our success. We sincerely hope to establish business contacts with our customers and provide high-quality services. "Practicality, development, innovation" and entrepreneurship and integrity are our company's business objectives. Warmly welcome customers and colleagues to visit and patronize, and create the glory of the steel industry.
In many years of operation, the company has won the recognition of the majority of users with fast, efficient and perfect after-sales service. In today's increasingly fierce market competition, while giving full play to its own advantages, it also draws on the experience of successful companies, constantly improves itself, rationally adjusts business strategies, and strives to adapt to the market. We will adhere to the tenet of quality first and reputation first, and serve the society with high standards, high quality and high standards. Relying on a complete modern enterprise management and quality system and advanced quality inspection methods, we will strive to build the "Chengshun Metal" brand and provide the best quality products and services to new and old customers at home and abroad!
We firmly believe that "quality is the core of the company's sustainable strength", we will form a solid, long-term, and win-win relationship with customers, keeping in mind the corporate motto of "survive by quality, develop by technology", and act with integrity. Quality requirements are committed to In order to provide excellent products and personal services; adhere to the boutique strategy, carefully build a competitive enterprise with professional characteristics in the steel industry and special alloy technology.



SAE52100 UNS G52986 Bearing Steel Tube Round Customized Sizes 3

Certificates



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 3



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
