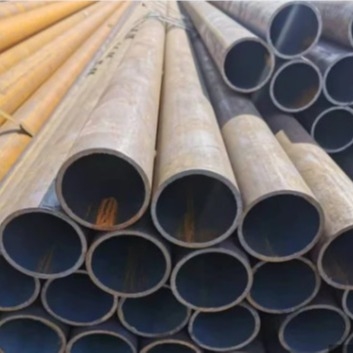

Fluid Transfer Line Hot Rolled Precision Steel Pipe DIN 17175 ST 35.8 200MM OD
Product Details
| Standard: | ASTM | Type: | Welded |
|---|---|---|---|
| Application: | Building | Section Shape: | Round |
| Length: | 1-12m | Transport Package: | Waterproof Package Or As Required |
| Highlight |
Welded Hot Rolled Precision Steel Pipe,DIN 17175 Hot Rolled Steel Pipe,200MM OD Hot Rolled Steel Pipe |
||
Product Description

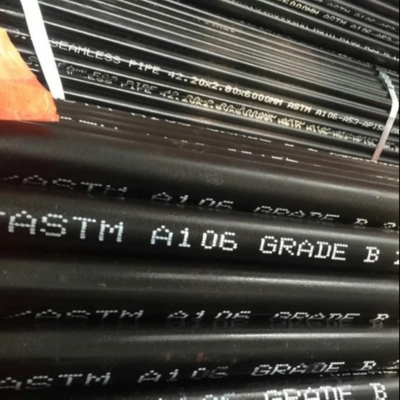

Fluid Transfer Line White Black ASTM A106 GRADE BDIN 17175 ST 35.8 Hot Rolled Precision Steel Pipe 200MM OD
Carbon steel tube is made of steel ingot or solid tube blank perforated into wool tube, and then hot rolled, cold rolled or cold drawn. Carbon steel pipe plays an important role in our steel pipe industry. According to incomplete statistics, existing carbon steel tube manufacturers in our country about more than 240 enterprises, carbon steel tube units about more than 250 sets, annual capacity about more than 4.5 million tons.
| Material | Carbon steel Stainless steel |
| ASME, ASTM, EN, BS, GB, DIN, JIS, etc | |
| Steel Grade | Q235, Q345B, 10 #, 20 #, 45 # '35CrMo, 40Cr, etc |
| Wall Thickness | 1∽100mm |
| Diameter | 5cm∽400cm |
| Manufacturing Method | Cold rolling/cold dialing |
| Manufacturing Technique | Seamless processing technology of tube billet |
| Shape | Round, Square, Rectangular, Oval |
| Surface | Primary, Bright Polished, Hairline, Mirror |
| Color | Silver/bright |
| Delivery Time | In stock: 5-10 days Not in stock: 10-20 days |
| Payment Terms | T/T, L/C, Paypal, Credit Card, Trade Online |
| MOQ | 1 Ton |
Chemical Compositon
| No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Mechanical Performance
|
Grade
|
Mechanical Performance
|
|||
|
201
|
Hardness
|
HB≤241
|
HRB≤100
|
HV≤240
|
|
304
|
HB≤187
|
HRB≤90
|
HV≤200
|
|
|
316
|
HB≤187
|
HRB≤90
|
HV≤200
|
|
|
316L
|
HB≤187
|
HRB≤90
|
HV≤200
|
|
|
410
|
HB≤183
|
HRB≤88
|
HV≤200
|
|
|
430
|
HB≤183
|
HRB≤88
|
HV≤200
|
|
Product Photo
Packing & Delivery
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
