0.5-80mm Thickness ASTM A179 Gr.B Hot Rolled Steel Pipe For Engineering Construction
Product Details
| Outer Diameter: | 21.3 - 813 Mm | Application: | Oil|Gas|Fluid|Construction|Chemical|Petroleum|Traffic |
|---|---|---|---|
| Grade: | Carbon Steel | Material: | Alloy Steel |
| Product Name: | Hot Rolled Steel Tube|Seamless Steel Tubes | Transport Package: | Standard Marine Packing |
| HS Code: | 7304191000 | Technique: | Hot Rolled|Seamless|Cold Rolled |
| Highlight |
Engineering Construction Hot Rolled Steel Pipe,0.5mm Hot Rolled Steel Tube,Engineering Construction Hot Rolled Steel Tube |
||
Product Description
0.5-80mm Thickness ASTM A179 Gr.B Hot Rolled Steel Pipe For Engineering Construction
ASTM A179 is a seamless cold-drawn mild steel pipe used primarily in the manufacture of heat exchangers and condensers.
The chemical composition of this steel pipe includes: carbon (C) content between 0.06% and 0.18%, manganese (Mn) content between 0.27% and 0.63%, phosphorus (P) content up to 0.035%, sulfur (S) content up to 0.035%. It is also known as No. 10 Premium mild steel. It should be noted that not all steels that meet these chemical compositions can be used to make A179 steel pipes, and other requirements of ASTM standards such as surface finish and hardness need to be met.
|
0.5-80mm Thickness ASTM A179 Gr.B Hot Rolled Steel Pipe For Engineering Construction
|
||
|
Size |
OD
|
21.3mm~1620mm(round)
|
|
Thickness
|
0.5mm-30mm
|
|
|
Length
|
1-12m or as per customer's requirement
|
|
|
Surface
|
Hot dipped galvanized, 20g-275g/m2
|
|
|
Standard |
GB/T13793-1992,GB/T14291-2006, GB/T3091-1993,GB/T3092-1993,GB3640-88 BS1387/1985,ASTM A53/A36, EN39/EN10219,API 5L,GB/T9711.1-99 etc
|
|
|
Material
|
Q195-Grade B, SS330, SPC, S185 Q215-Grade C,CS Type B, SS330, SPHC Q235---Grade D, SS400, S235JR, S235JO, S235J2 Q345---SS500,ST52
|
|
|
Application
|
Widely used in structure, accessorize,construction, machinery parts,fluid transportation,the stress parts of the automobile tractor parts and so on.
|
|
|
Package |
1) Big OD: in bulk;
2) Small OD: packed by steel strips; 3) Plastic bags; 4) According to customer's requirement. |
|
|
Delivery time
|
within 7 working days after receiving the deposit
|
|
|
Advantage |
1) Reasonable price with excellent quality;
2) Abundant stock and prompt delivery; 3) Rich supply and export experience, sincere service; |
|
Production process of hot rolled tubes
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.
Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.
Advantages
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.
Regular Hot Rolled Pipe Sizes:
(Or per customers’ requirements)
|
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
OD × WT (mm) |
|
12×1.5 |
133 ×4～12 |
406.4×6～25 |
73×4-4.5-5-6-7-8-9-10-12-15 |
219×30-40 |
|
14×1.5-2.5-3 |
141.3×4～12 |
426 ×6～25 |
76×4-4.5-5-6-7-8-9-10-12-14 |
245×8-10-14-17-20-22 |
|
16×1.5-2.5-4 |
159 ×4～12 |
457 ×6～38 |
83×4.5-5-10/ 12 14 16 18 20 |
245×25-28-30-34-40 |
|
18×2.3-4-5 |
165 ×4～20 |
508 ×6～38 |
89×4.5-8-10/12-14 16 -18 20 |
273×7-9-12-15-18-20-25 |
|
20×2.5-3-5 |
168.3×4～20 |
530 ×6～40 |
95×4.5-6-8/10-12-14-16-20 |
273×30-35-38-40 |
|
24×2.5-3-4-5-6 |
177.8×4～22 |
559 ×6～40 |
102×4.5-5-6-7-8-10-12-14-16-20 |
299×8-12-16-20-24-28 |
|
25×2.5-3-4-5-6 |
323.8×6～25 |
610 ×6～40 |
108×4.5-5-6-7-8-10/12-14-18-20-22 |
299×30-32-36-38-40 |
|
28×3-3.5-4-5-6 |
340 ×6～25 |
630 ×6～40 |
114×4.5-5-6-7-8-10-12-14-18-20 |
325×8-12-14-18-38 |
|
32×3.5-4-5-6-8 |
355.6×6～25 |
>630×6～44 |
121×4.5-5-6-7-8-10-12-14-16-20 |
325×28-32-34-38 |
|
34×4-5-6-8 |
377 ×6～25 |
<914×6～60 |
127×4.5-5-6-7-8-10-12-14-16-20 |
351×10-16-20-25-40 |

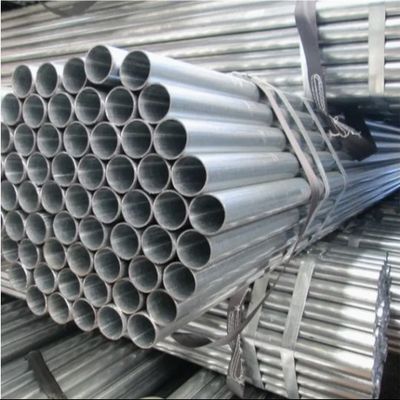

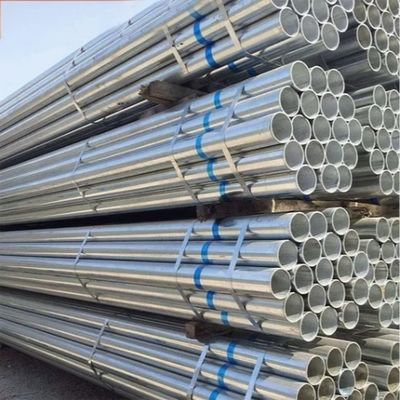

Product Photo
Factroy Pictures
Pipe & Tube Processing Photo
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time
