Cold Drawn E195 E235 E355 Seamless Steel Tubes OD 8-114 mm for Construction Machinery
Product Details
| Technique: | Cold Rolled/ Hot Rolled | Inspection: | Party Inspection |
|---|---|---|---|
| Thickness: | 1.24mm-60mm | Length: | 12M, 6m, 6.4M |
| Oiled Or Non-oiled: | Non-oiled | Surface: | Cold Finished |
| Type: | Seamless Steel Pipe | Alloy Or Not: | Non-Alloy |
| Highlight |
seamless stainless steel tube,Seamless Steel Tubing |
||
Product Description
Cold Drawn E195 E235 E355 Seamless Steel Tubes OD 8-114 mm for Construction Machinery
Product Description:
EN10305-4 hydraulic seamless steel tube inside and outside the wall without oxidation layer, under high pressure, no leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, surface antirust processing, widely used in the hydraulic system in steel tube, and injection molding machine with a steel tube, hydraulic press with steel, ship system with steel tube, EVA foam hydraulic machinery, precision hydraulic steel pipe cutting machine, shoe-making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry.
|
Product name:
|
Seamless Steel Pipes
|
|
Material:
|
E195 E235 E355
|
|
Thickness:
|
1.24-60mm
|
|
Tolerance:
|
±1%
|
|
Craft:
|
Cold Rolled
|
|
Standard:
|
GB/T 9711.1-1997,API,API 5L
|
|
Special tube:
|
API Pipe
|
|
Application:
|
Fluid Pipe
|
Chemical Composition:
| Steel Grade | C% | Si% | Mn% | P% | S% | AL% |
| E215 | ≤0.10 | ≤0.05 | ≤0.7 | ≤0.025 | ≤0.025 | ≥0.025 |
| E235 | ≤0.17 | ≤0.35 | 0.4-1.2 | ≤0.025 | ≤0.025 | |
| E255 | ≤0.21 | ≤0.35 | 0.4-1.1 | ≤0.025 | ≤0.025 | |
| E355 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.025 | ≤0.025 |
Mechanical Properties:
| Delivery Condition | BK | BKW | GBK | NBK (N) | |||||
| Steel Grade | Rm | A % | Rm | A % | Rm | A % | Rm | ReH | A % |
| Mpa (Min) | (Min) | Mpa(Min) | (Min) | Mpa(Min) | (Min) | Mpa(Min) | Mpa(Min) | (Min) | |
| E215 | 430 | 8 | 380 | 12 | 280 | 30 | 290~430 | 215 | 30 |
| E235 | 480 | 6 | 420 | 10 | 315 | 25 | 340~480 | 235 | 25 |
| E255 | 580 | 5 | 520 | 8 | 390 | 21 | 440~570 | 255 | 21 |
| E355 | 640 | 4 | 580 | 7 | 450 | 22 | 490~630 | 355 | 22 |
Factory test and other terms:
1.Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing service.
Competitive Advantage:
We exported 2500~3000 Tons each month E355, E235 Seamless steel tubes to global markets, our clients in America and Europe are satisfied with our quality and fast delivery time to guarantee their production or meet their final clients' requests.

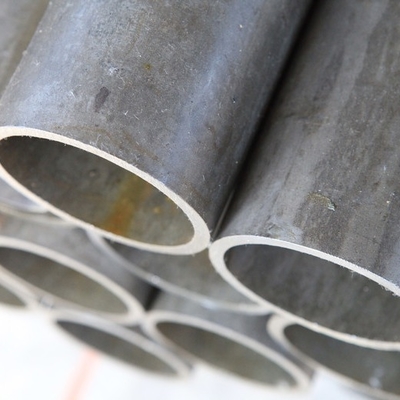

Detailed Photo:

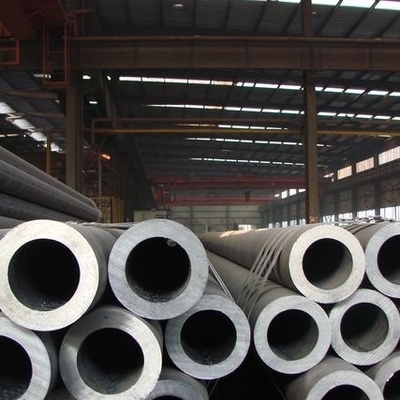

Factory Photo:
Processing:
Application:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
