GCr15/100Cr6/SUJ2/SKF3/SKF3S/GCr15SiMn Seamless Stainless Bearing Steel Tube Diameter 16mm ~ 320mm
Product Details
| Special Use:: | Mold Steel, Free Cutting Steel | Application: | Machinery |
|---|---|---|---|
| Steel Grade: | Bearing Steel | Delivery Condition: | Heat Treatment |
| Product Name: | Bearing Steel Tube | Section Shape: | Round |
| Technique: | Hot Rolled, Cold Drawn | Type: | Seamless |
| Highlight |
steel round tube,carbon steel tubing |
||
Product Description
GCr15/100Cr6/SUJ2/SKF3/SKF3S/GCr15SiMn Seamless Stainless Bearing Steel Tube Diameter 8mm ~ 101.6mm
Description
1. GB/T 18254 GCr15SiMn main features and application
GB/T 18254 GCr15SiMn is a kind of high-carbon chromium bearing steel. Compared with GCr15 steel,it contains higher percent of Si,Mn element,which improves the hardenability and elastic limit. Besides, abrasion performance is better than GCr15. But GCr15SiMn is sensitive to the white dot, temper brittleness,plastic deformation in cold working.
GB/T 18254 GCr15SiMn is usually used to manufacture bearing ring,steel ball,cone roller,spherical roller in big size. The bearing parts works at temperature lower than 180°C. Besides,GCr15SiMn can also be used for parts that high hardness and abrasive resistance are required, such as abrasives,measuring tools,taps.
2. The equal material of GB/T 18254 GCr15SiMn in different standard.
| Product name | special steel | |
| Technique | Hot Rolled | |
| Material Quality | GCr15/100Cr6/SUJ2/SKF3/SKF3S/GCr15SiMn/ZGCr15/ZGCr15SiMn | |
| Size | Dimensions | 16-320MM |
| Length | 3000-8200mm | |
| Surface | Standard | |
| Inspection | With Chemical Composition and Mechanical Properties Testing; Hydrostatic Test, Dimensional and Visual Inspection, With Nondestructive Inspection | |
| Application | Hot Working | |
| Trade Terms | FOB, CFR, CIF, EXW. | |
| Payment Terms |
T/T,L/C at sight 30%T/T in advance,balance 70% should be paid after receiving the copy of BL. |
|
| Loading Port | Shanghai Port | |
|
|
ΓOCT 801 |
ISO683-17 |
DIN 17230 |
NF A35-565 |
|
GCr15SiMn |
IIIX15CΓ |
3 |
100CrMn 6 |
100CrMn 6 |
GB/T 18254 GCr15SiMn chemical composition by %
|
C |
Si |
Mn |
Cr |
Mo |
P |
S |
others |
|
0.95-1.05 |
0.45-0.75 |
0.95-1.25 |
1.4-1.65 |
≤1.0 |
≤0.025 |
≤0.025 |
Ni≤0.30 |
GB/T 18254 GCr15SiMn mechanical property and delivery condition
|
|
Standard |
Delivery Condition |
Anneal (soften or spheroidizing ) hardness HBW |
|
|
Technical conditions |
Specification |
|||
|
Hot rolled bar |
GB/T 18254 |
GB/T 702 |
Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin. |
179-217 |
|
Forging bar |
GB/T 908 |
|||
|
Cold drawn bar |
GB/T 905 |
Cold drawn or burnishing |
||
|
Hot rolled tube/pipe |
GB/T 18254 |
Hot rolled,hot rolled annealing burnishing |
||
|
Cold drawn tube/pipe |
Cold drawn |
|||
|
Steel wire rod |
GB/T 18254 |
GB/T 14981 |
Hot rolled or spheroidizing annealing |
|
Generally, in china, we usually use fully-hardenability heat treatment,that is,entire inductive heating-surface quenching heat treatment, to make the surface of the material high hardness and abrasive resistance of fully quenching high-carbon chromium bearing steel,and to make the core high toughness and good impact propriety.
Applications
1,Mainly used for manufacturing ordinary rolling bearing ring.
2,other applications such as used for automotive industry and bearings in rotating machinery.

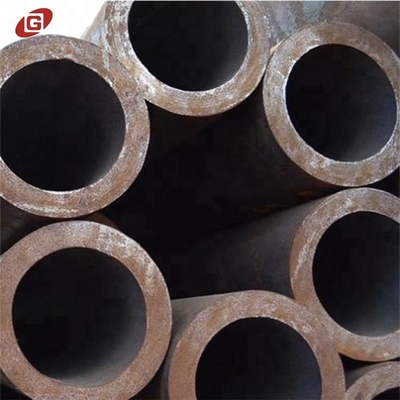

Product Photo
Appliction
Packing & Delivery
Our Factory
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
