Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: JIANGSU HUACHENG
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: HC
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thick Wall Application: Machinery
Certificate: PED, ISO, BV, TUV Product Name: Bearing Steel Tube
Section Shape: Round Standard: GB, SKF, ASTM, DIN, JIS, BS
Technique: Seamless, Hot Rolled, Cold Drawn
High Light:

carbon steel tubing

,

thin wall steel tube


Product Description



Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard





Quick Detail:



SKF D33 / SAE52100/100Cr6 Stainless Bearing Steel Tube
Standard: SKF/ ASTM/DIN/JIS/BS/GB
Size(mm):

OD:8mm ~ 101.6mm

WT:1.0mm ~ 10mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)





Description:



Product Name

SKF D33 / SAE52100/100Cr6 etc Tube for Deep Groove Ball Bearing

WT

1.8-14MM

OD

10-114MM

Length

4-12m

Standard

SKF D33

GB/T18254-2002

ASTM A295-89

DIN17230-80

JISG4805-90

DIN17230-80

ISO683

NFA35

KS D3525

Steel Grade

SKF24 / SKF13 / SKF1 /SKF2 / SKF3

GCr15

SAE52100

100Cr6(1.3505)

SUJ2

100C6

SKF 3

SKF 3S

STB2

Quality system

ISO

Productivity

10,0000 Tons per year

MOQ

5Ton

Packaging

Wooden Cases or Wooden Pallet Bundled packing or as per your request

Technical Processes

Cold Drawn

Cold Rolled

Supply

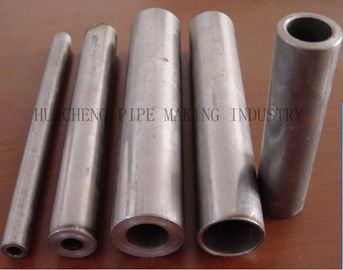

Seamless Steel Tube Bearing Ring Sleeve

Market

North America

South America

Middle East

Europe Asia

Africa etc





SKF D33  SKF24:



SKF D33  SKF24 is a kind of high-carbon chromium bearing steel,also a new high abrasive resistance steel. SKF24 is equivalent to SKF24 at Germany standard. Compared with 100CrMn 6 and 100Cr 6, SKF24 has more percent of Cr element which improves the abrasive resistance ,and is added Mo element.

SKF24 is mainly used to manufacture various bearing inner rings (wall thickness up to 20mm,not the 16mm),making a wide use. Except that, SKF24 can also be used to manufacture internal-combustion engine,electric locomotive,machine tool,tractor,steel rolling equipment,driller,steel balls,roller,and axle sleeve of rail truck, mining machine spiale.



The equal material of  SKF D33  SKF24 in different standard:



SKF D33

GB/T 18254

DIN 17230

SKF24

100CrMo 7

100CrMo 7



SKF D33  SKF24 chemical composition:



C

Si

Mn

Cr

Mo

P

S

others

0.95-1.05

0.2-0.4

0.25-0.4

0.65-1.95

0.15-0.25

≤0.025

≤0.02

Ni≤0.25
Cu≤0.25





SKF D33  SKF24 mechanical property and delivery condition:




Category

Standard

Delivery  Condition

Anneal (soften or spheroidizing ) hardness  HBW

Hot rolled bar

SKF D33

Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin.

179-207

Forging bar

Cold drawn bar

Cold drawn or burnishing

Hot rolled tube/pipe

Hot rolled,hot rolled annealing burnishing

Cold drawn tube/pipe

Cold drawn

Steel  wire rod

Hot rolled or spheroidizing annealing





Applications:

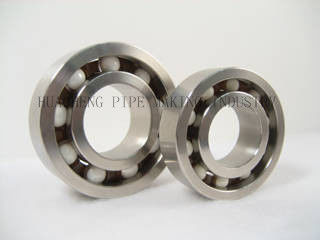

1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.





Competitive Advantage:



Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.



Factroy Pictures:

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 0



Pipe & Tube Processing

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 1

Factory Equipments:

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 2



Production Line:

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 3

Quality Control:



Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 4



Steel Pipe & Tube Application:

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 5

Package:

Export Standard / Wooden Box

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 6

Main Certificates:

PED ISO BV TUV etc.

Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 7

Main Customers:



Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 8Thick Wall BV TUV Stainless Bearing Steel Tubing with SKF D33 SAE52100 100Cr6 Standard 9
