ASTM A213 DIN 17175 Annealed Cold Drawn Seamless Steel Tube , Carbon Steel Liquid Pipe
Product Description:
Cold Drawn Seamless (CDS) manufacturing process can greatly increase the strength of the seamless steel pipe and makes it very suitable for critical high safety and high performance applications. WAN Steel brand cold drawn seamless pipes are made of high quality raw material by automatic production line with strict quality control. Our CDS tubes have high dimensional tolerances, excellent section features, better surface finish and higher mechanical properties than the corresponding grades of hot finished seamless steel tubes.WAN Steel manufactures and wholesales many types of cold drawn seamless tube available for mechanical and hydraulic applications.
|
Standard
|
ASTM A53/A106 Gr.B API 5L Gr.B SA179 SA192 Seamless Steel Pipe / Welded Steel Tube
AP175-79, DIN2I5L , ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/A192/A213/A210 /370 WP91, WP11,WP22. DIN17150, DIN2448,JISG3452-54. |
|
Material
|
API5L,Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80,
ASTM A53Gr.A&B,ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2,SY/T5037, SY/T5040 STP410,STP42. |
|
Certificates
|
ISO TUV SGS BV etc
|
|
Thickness
|
SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40,
SCH60, SCH80, SCH100, SCH140, SCH160,XS, |
|
Length
|
5.8m 6m Fixed, 12m Fixed, 2-12m Random.
|
|
Surface Treatment
|
Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation .
|
|
Usage /Application
|
Oil pipe line, Drill pipe, Hydraulic pipe, Gas pipe, Fluid pipe,
Boiler pipe,Conduit pipe, Scaffolding pipe pharmaceutical and ship building etc. |
|
End
|
Bevel end(>2"), Plain (≤2"),with plastic cap, with screwed and
socket. |
Factory test and other terms:
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Delivery Condition:
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
All other tubes applicable for boiler and heat exchanger tube we can produce
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, 12Cr2MoG,15CrMoG, 12Cr1MoVG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |

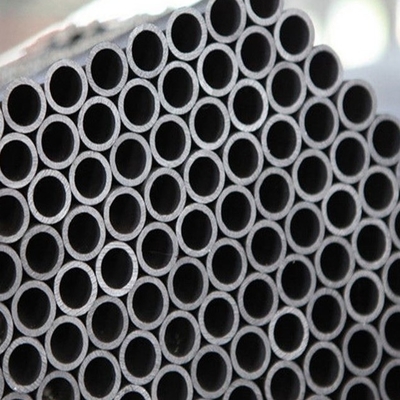

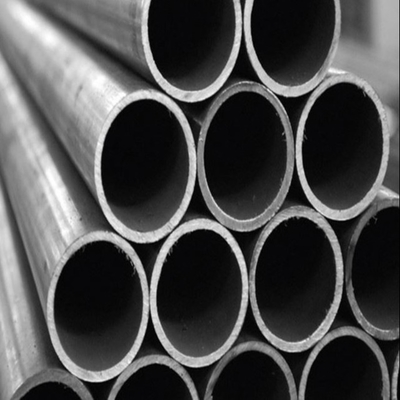

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Steel Pipe & Tube Application:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc.
Packaging and Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
