Seamless Steel Pipe 100Cr6 / Gcr15 / Suj2 / SAE52100 Pipe By Cold Drawn Bearing Steel Tube

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO
Model Number: 100Cr6 / Gcr15 / Suj2 / SAE52100
Minimum Order Quantity: 1MT
Price: NEGOTIABLE
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3-15 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Special Pipe: API Pipe, Other, EMT Pipe, Thick Wall Pipe Thickness: 0.8 - 25 Mm
Grade: Chrome Steel GCR15 Tolerance: OD+/-0.2, WT+8%
Technique: Cold Drawn Outer Diameter: 100mm
Processing Service:: Cutting, Grinding, Turning Application: Structure Pipe
High Light:

carbon steel tubing

,

thin wall steel tube


Product Description



Seamless Steel Pipe 100Cr6 / Gcr15 / Suj2 / SAE52100 Pipe By Cold Drawn Bearing Steel Tube



Description



1. Grade:100Cr6/Gcr15/Suj2/SAE52100

2. Size: 5mm~840mm

3. Standard: GB/T18254-2016

4. Certification: ISO9001, SGS



Product Name
100Cr6/Gcr15/SUJ2/SAE52100 SEAMLESS STEEL TUBE/PIPE
Material
100Cr6/Gcr15/SUJ2/SAE52100
Color
nickel white or baclk
Standard
GB/T-18254 YB/T4146-2016
Grade
100Cr6/Gcr15/Suj2/SAE52100
Heat treatment
Spheroidizing annealing
Production process
Cold drawn ,Cold roller, Hot roller
Handress
179~350HB



GB/T 18254 GCr4 is a kind of high-carbon chromium bearing steel.GCr4 bearing steel is a low hardenability steel with good impact resistance . And also GB/T 18254 GCr4 saves energy and resources(Cr,Mn,Si,Mo).
This material has been used for railcar axle box bearing,changes GCr15SiMn or GCr15 the situation whose use for bearing inner rings. Now the life is one time longer than before. GCr4 is usually for steel balls or running pulley of low loading and simple shape machine shaft.
The equal material of  GB/T 18254 GCr4 in different standard.




GB/T 18254

ΓOCT 801

ASTM A295

GCr4

IIIX4

50100



GB/T 18254 GCr4 chemical composition:



C

Si

Mn

Cr

Mo

P

S

others

0.95-1.05

0.15-0.3

0.15-0.3

0.35-0.5

≤0.08

≤0.025

≤0.02

Ni≤0.25
Cu≤0.20



GB/T 18254 GCr4 mechanical property and delivery condition




Category

Standard

Delivery  Condition

Anneal (soften or spheroidizing ) hardness  HBW

Technical   conditions

Specification
Varieties

Hot rolled bar

GB/T 18254

GB/T 702

Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin.

179-207

Forging bar

GB/T 908

Cold drawn bar

GB/T 905

Cold drawn or burnishing

Hot rolled tube/pipe

GB/T 18254

Hot rolled,hot rolled annealing burnishing

Cold drawn tube/pipe

Cold drawn

steel wire rod

GB/T 18254

GB/T 14981

Hot rolled or spheroidizing annealing



Generally, in china, we usually use fully-hardenability heat treatment,that is,entire inductive heating-surface quenching heat treatment, to make the surface of the material high hardness and abrasive resistance of fully quenching high-carbon chromium bearing steel,and to make the core high toughness and good impact propriety.





Applications



1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.

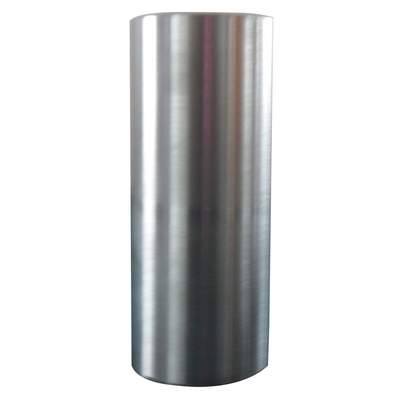

Detailed Photo



ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 0

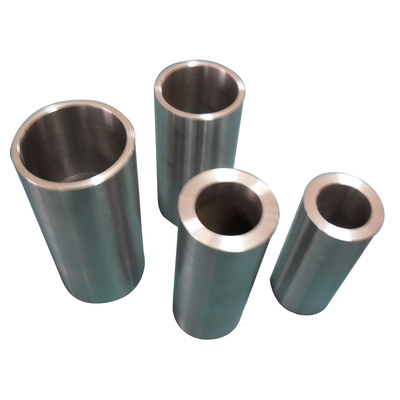

Factroy Pictures



ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 1

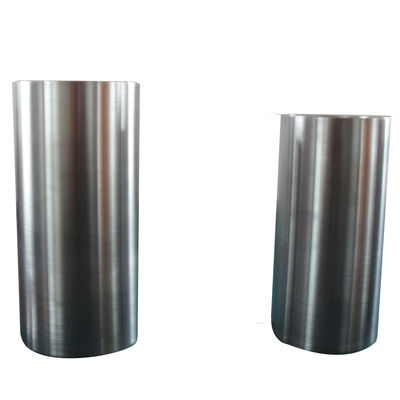

Pipe & Tube Processing



ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 2



Steel Pipe & Tube Application

ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 3

Packaging and Shipping:

ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 4



ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 5

Certificates:

ASTM A295 52100 SAE 52100 Round Bearing Steel Tube , Thick Wall Stainless Steel Tubes 6

Company Profile



WX SYLAITH SPECIAL STEEL CO., LTD is located in Wuxi, the largest steel distribution center in east China.Our company has been committed to providing customers with high-quality steel materials and has become the leading supplier of comprehensive material solutions in China. Our company has 20,000 square meters of indoor storage, more than 20,000 tons of spot inventory. Spot product standard involves European standard, American standard, British standard, Australian standard, German standard, Russian standard and so on.
