Black Paint St35.8 Seamless Carbon Steel Boiler Tube For High Pressure Service
Product Details
| Application: | Boiler Pipe | Thickness: | 2.9 - 60 Mm |
|---|---|---|---|
| End Protector: | Plastic Pipe Cap Iron Protector | Outer Diameter:: | 38mm |
| Alloy Or Not: | Non-Alloy | Length: | 12M, 6m, 6.4M, 5.8-12m |
| Highlight |
Black paint Seamless Steel Tube,Seamless Boiler Tube For High Pressure Service,Carbon Steel Boiler Tube |
||
Product Description
DIN 17175 St35.8/St 45.8 Seamless Carbon Steel Boiler Tube For High, Middle And Low Pressure Service
Seamless pipe is widely used. General purpose seamless pipe by ordinary carbon structural steel,
low alloy structural steel or alloy structural steel rolling, production is the most, mainly used for conveying fluid pipes or structural parts.
| Standard | DIN17175 |
| Steel Grade/Material | ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910 |
| Outer Diameter(OD) | 1.5”-28”(38mm-720mm) |
| Wall Thickness(WT) | 0.102”-2.362”(2.6mm-60mm) |
| Length | 5.8-16m or OEM |
| Packing | Plastic cap or bundling |
| Surface Treatmengt | Black paint,3LPE,3LPP,FBE or OEM |
| Section Shape | Round |
| Technique | Seamless hot rolled |
| Application | Used in the construction of boilers, pipe-lines, pressure vessels and equipment for service up to 600 ℃ and simultaneous high pressures |
| Place of Origin | China |
| MOQ | 1 ton |
| Transportation | 1.Sea port:Tianjin Xingang port,Qingdao port,Shanghai Luojing port →America,Europe,Africa,Middle East,India, Pakistan,Japan,Korea, Australia…(shipping) 2.Land port:Alataw pass port |
Chemical Components
|
|
|
Chemical Components (%) | ||||||
| C | Si | Mn | P | S | Mo | Cr | ||
| DIN17175 | St 35.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | ≤0.040 | ≤0.040 | / | / |
| St 45.8 | ≤0.17 | 0.10-0.35 | 0.40-0.80 | ≤0.040 | ≤0.040 | / | / | |
| 15Mo3 | 0.12-0.2 | 0.10-0.35 | 0.40-0.80 | ≤0.035 | ≤0.035 | 0.25-0.35 | / | |
| 13CrMo44 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.45-0.65 | 0.70-1.1 | |
| 10CrMo910 | 0.08-0.15 | ≤0.50 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.90-1.2 | 2.0-2.50 | |
Mechanical properties
|
|
|
Mechanical properties | ||
| Tensile Strength (Mpa) | Yield Strength (Mpa) |
Elongation |
||
| DIN17175 | St 35.8 | 360-480 | ≥235 | ≥25 |
| St 45.8 | 410-530 | ≥255 | ≥21 | |
| 15Mo3 | 450-600 | ≥270 | ≥22 | |
| 13CrMo44 | 440-580 | ≥290 | ≥22 | |
| 10CrMo910 | 450-600 | ≥280 | ≥20 | |

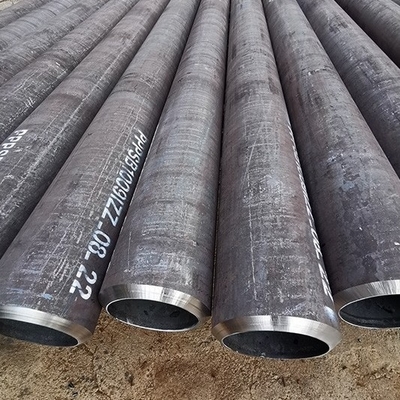

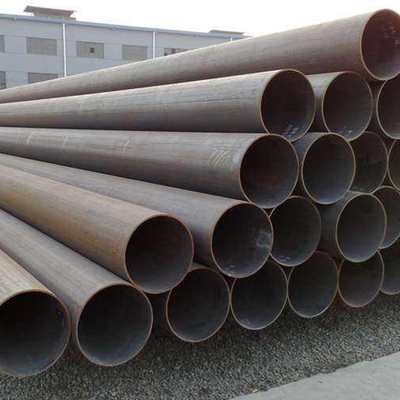

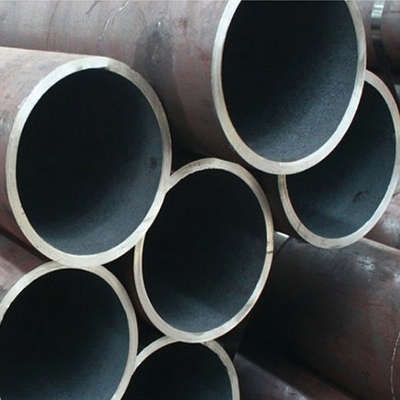

Product Photo
Application

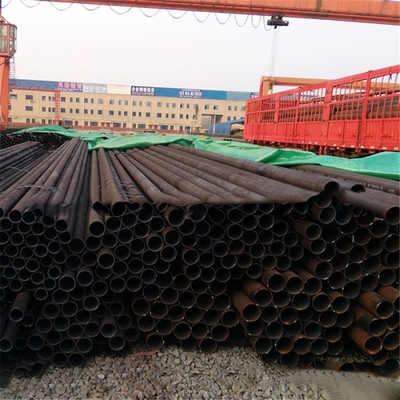

Packing & Delivery
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
