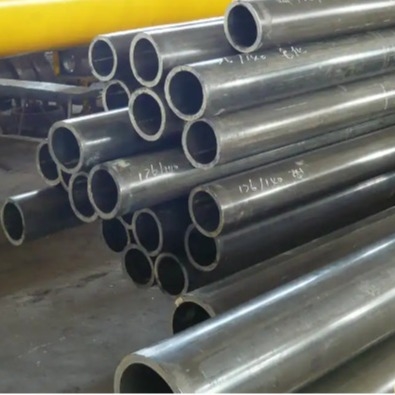

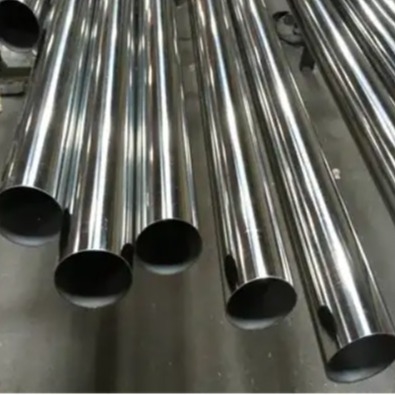

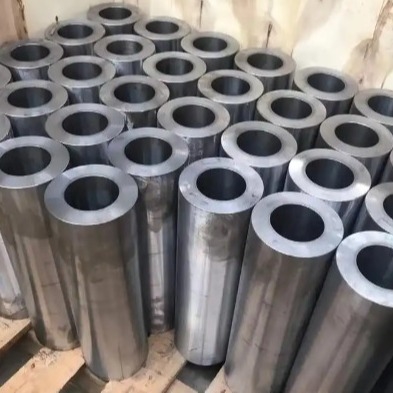

SS304 9041 2205 Duplex Stainless 1Inch Sch30 H8 Tolerates Cold Rolled Seamless Precision Honing Tubing
Quick Detail:
|
SS304 9041 2205 Duplex Stainless 1Inch Sch30 H8 Tolerates Cold Rolled Seamless Precision Honing Tubing
|
|
|
Section Shape
|
Round
|
|
Tolerance
|
±1%
|
|
Alloy Or Not
|
Non-Alloy
|
|
Thickness
|
1 - 60 mm
|
|
MOQ
|
5Ton
|
|
Length:
|
Client Requirement
|
|
Standard:
|
API, ASTM, GB, API 5L, API 5DP, ASTM A182-2001, ANSI A213M-2001,
|
|
Surface treatment
|
Black/Peeling/Polishing/Machined
|
|
Technique
|
cold rolled/drawn
|
|
Heat Treatment
|
Annealed; Quenched; Tempered
|
|
price terms
|
FOB,CRF,CIF,EXW all acceptable
|
|
Delivery Detail
|
inventory About 3-5； custom-made 10-15；rding to order's quantity.
|
|
Loading port
|
any port in China
|
|
Packing
|
standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)
|
|
Payment Terms
|
T/T, L/C at sight,West Union,D/P,D/A,Paypal
|
|
Container size
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
|
|
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
|
|
|
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
|
|
Description:
Product name: Heat Exchanger Tubes / Cold Drawn / ERW
Standard executived: ASTM / DIN / EN / GOST / SAE / JIS etc
(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )
Outside diameter:25.4mm
Wall Thickness:1.65mm
Length:6m-25m,also can be manufactured according to customers' requirements
Type:Cold Drawn or ERW
Ends:Plain ends or bevel ends
Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.
Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements
Factory test and other terms:
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Main Specification Details:
Delivery condition:
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
All other tubes applicable for boiler and heat exchanger tube we can produce
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, 12Cr2MoG,15CrMoG, 12Cr1MoVG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Competitive Advantage:
Huacheng Industry Pipe Making Corporation
Asia Leading Steel Pipe & Tube Manufacturer with more than 250,000Tons/Year, >60% shipped to more than 35 Countries.We aims at manufacturing quality pipes & tubes with reasonable and competitive price, good quality for our global customers.
Factroy Pictures:
Pipe & Tube Processing
Factory Equipments:
Production Line:
Quality Control:
Steel Pipe & Tube Application:
Package:
Export Standard / Wooden Box
Main Certificates:
PED ISO BV TUV etc.
Main Customers:
