2205 Seamless Duplex Phase Stainless Cold Rolled Tube For Heat Exchanger
Product Details
| Application: | Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Dr | Model NO.: | SS2205 |
|---|---|---|---|
| Technique: | Cold Rolled | MOQ: | 2 Tons |
| Surface Treatment: | Polishing, Sandblasting, Pickling | Length: | 6m-12m |
| Tolerance: | ±5% | ||
| Highlight |
2205 seamless stainless steel tube,duplex phase cold rolled tube,heat exchanger stainless steel tube |
||
Product Description
2205 Seamless Duplex Phase Stainless Cold Rolled Tube For Heat Exchanger
Seamless stainless steel pipes, as the name suggests, are steel pipes that are formed in one piece without any weld seams. They are made from solid round stainless steel billets through a series of processes such as piercing, hot rolling, and cold rolling/cold drawing to produce hollow long steel bars. Due to their "seamless" feature, they usually outperform welded stainless steel pipes in terms of pressure-bearing capacity, uniformity, and corrosion resistance.
| Category | Description |
|---|---|
| Product Name | Duplex 2205 Stainless Steel Pipes / Tubes (Seamless & Welded) |
| Key Standard Grades | UNS S32205 / S31803, ASTM A790/A789, EN 1.4462 |
| Primary Features | • High Strength: Yield strength is over twice that of conventional 316L. • Excellent Corrosion Resistance: Outstanding resistance to stress corrosion cracking (SCC), pitting, and crevice corrosion. • Cost-Effective: Life-cycle cost advantage due to longer service life and potential for weight reduction. |
| Chemical Composition (%) | Carbon (C) ≤ 0.030, Silicon (Si) ≤ 1.00, Manganese (Mn) ≤ 2.00, Phosphorus (P) ≤ 0.030, Sulfur (S) ≤ 0.020, Chromium (Cr): 22.0 - 23.0, Nickel (Ni): 4.5 - 6.5, Molybdenum (Mo): 3.0 - 3.5, Nitrogen (N): 0.14 - 0.20 |
| Typical Mechanical Properties | • Yield Strength (σ 0.2): ≥ 450 MPa (65 ksi) • Tensile Strength (σ b): ≥ 620 MPa (90 ksi) • Elongation: ≥ 25% • Hardness: ≤ 32 HRC |
| Corrosion Resistance Data | • PREN (Pitting Resistance Equivalent): 33-36 • Excellent resistance to chlorides, sulfuric acid, phosphoric acid, and organic acids. • Superior resistance to Stress Corrosion Cracking (SCC) in chloride-bearing environments. |
| Available Types | • Seamless Pipes (ASTM A790) • Welded Pipes (ASTM A790) |
| Standard Specifications | • Seamless: ASTM A790, ASME SA790, ASTM A999 • Welded: ASTM A790, ASME SA790, ASTM A1010 • Dimensions: ASTM A450/ASME SA450 |
| Common Sizes Range | • Seamless: Outer Diameter (OD): 1/8" to 24" (or larger), Wall Thickness (WT): SCH 10S to XXS • Welded: Outer Diameter (OD): 1/8" to 48" (or larger), Wall Thickness (WT): Customized as per requirement. |
| Surface Finish | • Annealed & Pickled: Standard dull gray matte finish. • Mechanically Polished: To specific Ra values (e.g., 0.8μm, 0.5μm for sanitary applications). • Electropolished: For ultra-hygienic and superior corrosion resistance (Common for Semiconductor/Bio-Pharm). |
| Main Application Fields | • Oil & Gas: Flow lines, pipelines, pressure vessels, offshore platforms. • Chemical & Petrochemical: Heat exchangers, tanks, process piping handling corrosive media. • Pulp & Paper Industry: Digesters, bleach plants. • Environmental & FGD Systems: Scrubbers, seawater cooling systems. • High-Purity Industries: Food & Beverage, Pharmaceutical, and Bio-tech process lines. |
| Advantages over 316L | • Double the Yield Strength allows for thinner walls and weight savings. • Far superior resistance to pitting, crevice corrosion, and Stress Corrosion Cracking. • Better value in aggressive environments. |
Chemical Composition
|
Chemical Composition
|
|||||
|
Grade
|
C
|
Si
|
Mn
|
Cr
|
Ni
|
|
304
|
≤0.07
|
≤1.00
|
≤2.0
|
18.00~20.00
|
8.00~10.50
|
|
304L
|
≤0.030
|
≤1.00
|
≤2.0
|
18.00~20.00
|
9.00~13.00
|
|
310S
|
≤0.08
|
≤1.00
|
≤2.0
|
24.00~26.00
|
19.00~22.00
|
|
316
|
≤0.08
|
≤1.00
|
≤2.0
|
16.00~18.00
|
10.00~14.00
|
|
316L
|
≤0.03
|
≤1.00
|
≤2.0
|
16.00~18.00
|
12.00~15.00
|
|
321
|
≤0.08
|
≤1.00
|
≤2.0
|
17.00~19.00
|
9.00~13.00
|
|
904L
|
≤0.02
|
≤1.00
|
≤2.0
|
19.00~23.00
|
23.00~28.00
|
|
2205
|
≤0.03
|
≤1.00
|
≤2.0
|
22.00~23.00
|
4.5~6.5
|
|
2507
|
≤0.03
|
≤0.08
|
≤1.20
|
24.00~26.00
|
6.00~8.00
|

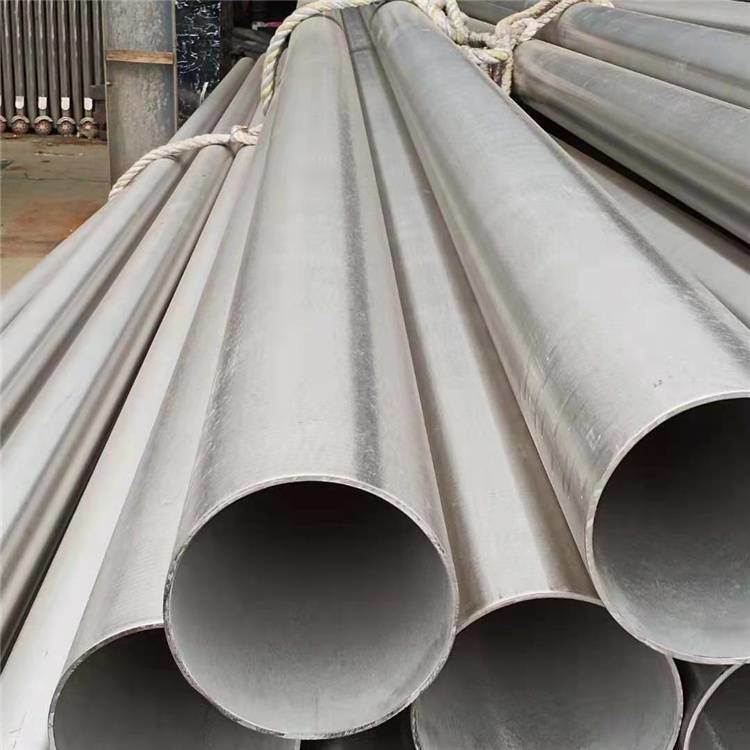

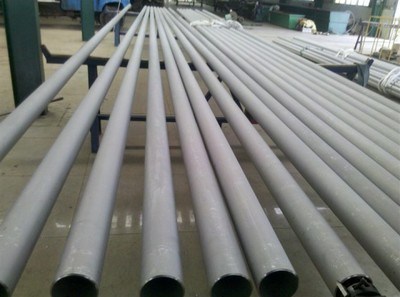

Product Photo
Packing & Shipping
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
