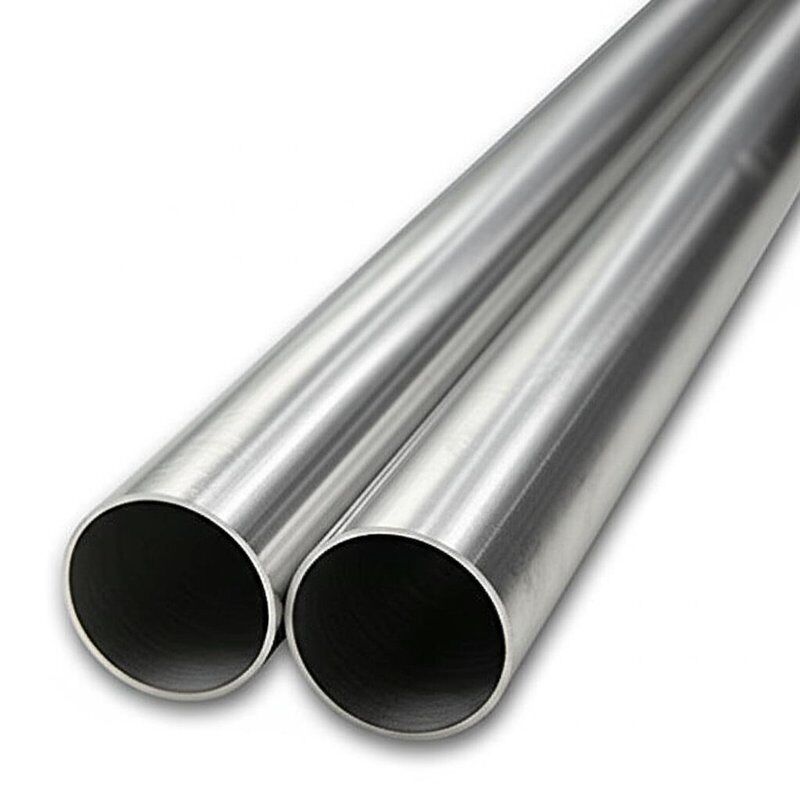

ASTM A179 Grade C Cold Drawn Seamless Tube For Heat Exchanger Pipe

ASTM A179 Grade C Cold Drawn Seamless Tube For Water Heater Pipe

High strength and excellent mechanical properties: Cold rolling processing results in "work hardening", significantly enhancing the strength, hardness and fatigue resistance of the material.
High dimensional accuracy and surface finish: The cold rolling process can achieve extremely small tolerances (wall thickness, outer diameter) and extremely smooth inner and outer surfaces.
Uniform microstructure: Cold deformation and subsequent heat treatment make the metal structure more uniform and dense, and the performance becomes more stable.
No weld seams: Eliminates the potential weak points, slag inclusions, pores, etc. of welded pipes, making them more reliable in terms of pressure-bearing, fatigue resistance and corrosion resistance.

Quick Detail:

1,Standards: ASTM A179

2,Material Grade: Carbon Steel / Alloy Steel or According to requirements.

Size: (mm)

OD: 19.05 mm

WT: 2.11 mm;

Length: max 12m

Description:

Product name: Heat Exchanger Tubes / Cold Drawn / ERW

Standard executived: ASTM / DIN / EN / GOST / SAE / JIS etc

(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )

Outside diameter:19.05mm

Wall Thickness:2.11mm

Length:1m-12m,also can be manufactured according to customers' requirements

Type:Seamless Cold Drawn

Ends:Plain ends or bevel ends

Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.

Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements

Factory test and other terms:

1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.

Main Specification Details:

Delivery condition:

All other tubes applicable for boiler and heat exchanger tube we can produce

Applications:

1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc

Competitive Advantage:

Huacheng Industry Pipe Making Corporation

Asia Leading Steel Pipe & Tube Manufacturer with more than 250,000Tons/Year, >60% shipped to more than 35 Countries.We aims at manufacturing quality pipes & tubes with reasonable and competitive price, good quality for our global customers.

Factroy Pictures:

Pipe & Tube Processing

Production Line:

Quality Control:

Steel Pipe & Tube Application:

Package:

Export Standard / Wooden Box

Main Certificates:

PED ISO BV TUV etc.
