Seamless Carbon Steel Pipe ERW Carbon Steel Pipe Tube ANSI B36.10 B36.19 Wall Thickness
Carbon steel pipe manufactured by permanentsteel contains seamless steel pipe, erw steel pipe, lsaw steel pipe, ssaw steel pipe, casing pipe and drill pipe etc.
Seamless sizes |
Welded sizes | Application |
Out diameter: 1/4"-36" | Out diameter: 21.3mm-3620mm |
API 5L, API 5CT, ASTM A53, ASTM A106, ASTM A179, ASTM A192, ASTM A252, ASTM A333, ASTM A335, ASTM A672 Water underground Sewage treatmentSteel scaffolding Transporting oil & gas Boiler and condenser tubes High-pressure applications Chemical processing |
Wall thickness:1.25mm-50mm | Wall thickness:1.65-mm-65mm | |
Length:3m-12m | Length:3m-12m |
Dimension reference standard
NPS | O.D | ANSI B36.10 B36.19 Wall Thickness | ||||||||||||||
mm | in | mm |
Sch 5S |
Sch 10S |
Sch 10 |
Sch 20 |
Sch 30 |
Sch 40S |
STD |
Sch 40 |
Sch 60 |
Sch 80 |
XS |
Sch 80S |
Sch 100 |
XXS |
8 | 1/4 | 13.72 | - | 1.65 | - | - | - | 1.73 | 1.73 | 1.73 | - | 3.02 | 3.02 | 3.02 | - | - |
10 | 3/8 | 17.14 | - | 1.65 | - | - | - | 2.31 | 2.31 | 2.31 | - | 3.2 | 3.2 | 3.2 | - | - |
15 | 1/2 | 21.34 | 1.65 | 2.11 | - | - | - | 2.77 | 2.77 | 2.77 | - | 3.73 | 3.73 | 3.73 | - | 7.47 |
20 | 3/4 | 26.67 | 1.65 | 2.11 | - | - | - | 2.87 | 2.87 | 2.87 | - | 3.91 | 3.91 | 3.91 | - | 7.82 |
25 | 1 | 33.4 | 1.65 | 2.77 | - | - | - | 3.38 | 3.38 | 3.38 | - | 4.55 | 4.55 | 4.55 | - | 9.09 |
32 | 1 1/4 | 42.16 | 1.65 | 2.77 | - | - | - | 3.56 | 3.56 | 3.56 | - | 4.85 | 4.85 | 4.85 | - | 9.7 |
40 | 1 1/2 | 48.26 | 1.65 | 2.77 | - | - | - | 3.68 | 3.68 | 3.68 | - | 5.08 | 5.08 | 5.08 | - | 10.16 |
50 | 2 | 60.32 | 1.65 | 2.77 | - | - | - | 3.91 | 3.91 | 3.91 | - | 5.54 | 5.54 | 5.54 | - | 11.07 |
65 | 2 1/2 | 73.02 | 2.11 | 3.05 | - | - | - | 5.16 | 5.16 | 5.16 | - | 7.01 | 7.01 | 7.01 | - | 14.02 |
80 | 3 | 88.9 | 2.11 | 3.05 | - | - | - | 5.49 | 5.49 | 5.49 | - | 7.62 | 7.62 | 7.62 | - | 15.24 |
90 | 31/2 | 101.6 | 2.11 | 3.05 | - | - | - | 5.74 | 5.74 | 5.74 | - | 8.08 | 8.08 | 8.08 | - | - |
100 | 4 | 114.3 | 2.11 | 3.05 | - | - | - | 6.02 | 6.02 | 6.02 | - | 8.56 | 8.56 | 8.56 | - | 17.12 |
125 | 5 | 141.3 | 2.77 | 3.4 | - | - | - | 6.55 | 6.55 | 6.55 | - | 9.53 | 9.53 | 9.53 | - | 19.05 |
150 | 6 | 168.28 | 2.77 | 3.4 | - | - | - | 7.11 | 7.11 | 7.11 | - | 10.97 | 10.97 | 10.97 | - | 21.94 |
200 | 8 | 219.08 | 2.77 | 3.4 | - | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 22.22 |
250 | 10 | 273.05 | 3.4 | 3.76 | - | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 25.4 |
300 | 12 | 323.85 | 3.96 | 4.57 | - | 6.35 | 8.38 | 9.52 | 9.52 | 10.3 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | - |
350 | 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.52 | *9.52 | 9.52 | 11.13 | 15.09 | 12.7 | 12.7 | 19.05 | 23.83 | - |
400 | 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.52 | *9.52 | 9.52 | 12.7 | 16.66 | 12.7 | 12.7 | 21.44 | 26.19 | - |
450 | 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.12 | *9.52 | 9.52 | 14.27 | 19.05 | 12.7 | 12.7 | 23.82 | 29.36 | - |
500 | 20 | 508 | 4.78 | 5.54 | 6.35 | 7.92 | 12.7 | *9.52 | 9.52 | 15.09 | 20.62 | 12.7 | 12.7 | 26.19 | 32.54 | - |
550 | 22 | 558.8 | 4.78 | 5.54 | 6.35 | 7.92 | 12.7 | *9.52 | 9.52 | - | 22.22 | 12.7 | 12.7 | 28.58 | 34.92 | - |
600 | 24 | 609.6 | 5.54 | 6.35 | 6.35 | 7.92 | 14.27 | *9.52 | 9.52 | 17.48 | 24.61 | 12.7 | 12.7 | 30.96 | 38.89 | - |
650 | 26 | 660.4 | - | *7.92 | 7.92 | 12.7 | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
700 | 28 | 711.2 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
750 | 30 | 762 | 6.35 | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
800 | 32 | 812 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 17.48 | - | 12.7 | 12.7 | - | - | - |
850 | 34 | 863.6 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 17.48 | - | 12.7 | 12.7 | - | - | - |
900 | 36 | 914.4 | - | *7.92 | 7.92 | 12.7 | 15.88 | *9.52 | 9.52 | 19.05 | - | 12.7 | 12.7 | - | - | - |
950 | 38 | 965.2 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1000 | 40 | 1016 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1050 | 42 | 1066.8 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1100 | 44 | 1117.6 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1150 | 46 | 1168.4 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1200 | 48 | 1219.2 | - | *7.92 | - | - | - | *9.52 | 9.52 | - | - | 12.7 | 12.7 | - | - | - |
1300 | 52 | 1320.8 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
1350 | 54 | 1371.6 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
1400 | 56 | 1422.4 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | - |
1500 | 60 | 1524 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
1600 | 64 | 1625.6 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
1700 | 68 | 1727.2 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
1800 | 72 | 1828.8 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
1900 | 76 | 1930.4 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - | |
2000 | 80 | 2032 | - | - | - | - | - | - | 9.52 | - | - | - | 12.7 | - | - |
Standard for carbon steel pipe
API 5L | for use in conveying gas, water, and oil in the natural gas and oil industries, and covers seamless and welded steel line pipe. |
API 5CT | for casing and tubing |
ASTM A53 | for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
ASTM A106 | for Seamless Carbon Steel Pipe for High-Temperature Service |
ASTM A179 | for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes |
ASTM A192 | for Seamless Carbon Steel Boiler Tubes for High-Pressure Service |
ASTM A213 | for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes |
ASTM A252 | for Welded and Seamless Steel Pipe Piles |
ASTM A333 | for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness |
ASTM A672 | for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures |
ASTM A335 | for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
DIN 17175 | seamless steel pipes are used in boiler installations, high-pressure pipelines and tank construction and special machinery for both high temperature and high-pressure devices. |
DIN 1629 | specifies the Seamless Circular Tubes of Non Alloys Steels with Special Quality Requirements. |
DIN 2391 | for Cold Drawn High Precision Seamless Tube |
DIN 2458 | Welded Steel Pipes in Unalloyed and Low Alloy Steels for Supply Purposes |
EN 10210 | Seamless steel tubes for pressure purposes |
BS 3059 | Steel boiler and superheater tubes |
JIS G3454 | Carbon steel pipes for pressure service |

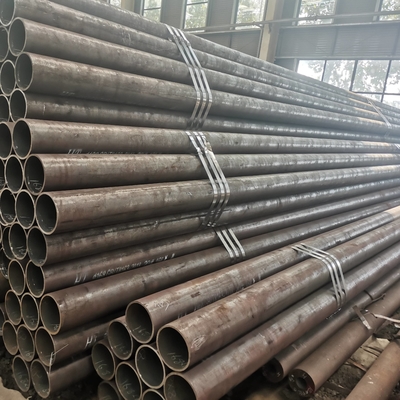

Product Photo
Factroy Pictures
Pipe & Tube Processing Photo
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
