ERW Seamless Carbon Steel Pipe Tube Wall Thickness For Sewage Treatment

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: API ASTM DIN
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Type: Seamless/ ERW Out Diameter: 10mm-3620mm
Wall Thickness: 1.5mm-65mm Length: 0.5m-12m
Standard: API 5L, API 5CT, ASTM A53, ASTM A106, ASTM A179, ASTM A192, ASTM A252, ASTM A333, ASTM A335, ASTM A672 Application: Water Underground Sewage Treatment Steel Scaffolding Transporting Oil & Gas Boiler And Condenser Tubes High-pressure Applications Chemical Processing
High Light:

cold drawn seamless steel tubing

,

Seamless tubes For Sewage Treatment

,

ERW Seamless Carbon Steel Pipe


Product Description



Seamless Carbon Steel Pipe ERW Carbon Steel Pipe Tube ANSI B36.10 B36.19 Wall Thickness



Carbon steel pipe manufactured by permanentsteel contains seamless steel pipe, erw steel pipe, lsaw steel pipe, ssaw steel pipe, casing pipe and drill pipe etc.



Seamless sizes

Welded sizes Application
Out diameter: 1/4"-36" Out diameter: 21.3mm-3620mm

API 5L, API 5CT, ASTM A53, ASTM A106,

ASTM A179, ASTM A192, ASTM A252,

ASTM A333, ASTM A335, ASTM A672

Water underground

Sewage treatment
Steel scaffolding
Transporting oil & gas
Boiler and condenser tubes
High-pressure applications
Chemical processing
Wall thickness:1.25mm-50mm Wall thickness:1.65-mm-65mm
Length:3m-12m Length:3m-12m



Dimension reference standard



NPS O.D ANSI B36.10 B36.19 Wall Thickness
mm in mm

Sch

5S

Sch

10S

Sch

10

Sch

20

Sch

30

Sch

40S

STD

Sch

40

Sch

60

Sch

80

XS

Sch

80S

Sch

100

XXS
8 1/4 13.72 - 1.65 - - - 1.73 1.73 1.73 - 3.02 3.02 3.02 - -
10 3/8 17.14 - 1.65 - - - 2.31 2.31 2.31 - 3.2 3.2 3.2 - -
15 1/2 21.34 1.65 2.11 - - - 2.77 2.77 2.77 - 3.73 3.73 3.73 - 7.47
20 3/4 26.67 1.65 2.11 - - - 2.87 2.87 2.87 - 3.91 3.91 3.91 - 7.82
25 1 33.4 1.65 2.77 - - - 3.38 3.38 3.38 - 4.55 4.55 4.55 - 9.09
32 1 1/4 42.16 1.65 2.77 - - - 3.56 3.56 3.56 - 4.85 4.85 4.85 - 9.7
40 1 1/2 48.26 1.65 2.77 - - - 3.68 3.68 3.68 - 5.08 5.08 5.08 - 10.16
50 2 60.32 1.65 2.77 - - - 3.91 3.91 3.91 - 5.54 5.54 5.54 - 11.07
65 2 1/2 73.02 2.11 3.05 - - - 5.16 5.16 5.16 - 7.01 7.01 7.01 - 14.02
80 3 88.9 2.11 3.05 - - - 5.49 5.49 5.49 - 7.62 7.62 7.62 - 15.24
90 31/2 101.6 2.11 3.05 - - - 5.74 5.74 5.74 - 8.08 8.08 8.08 - -
100 4 114.3 2.11 3.05 - - - 6.02 6.02 6.02 - 8.56 8.56 8.56 - 17.12
125 5 141.3 2.77 3.4 - - - 6.55 6.55 6.55 - 9.53 9.53 9.53 - 19.05
150 6 168.28 2.77 3.4 - - - 7.11 7.11 7.11 - 10.97 10.97 10.97 - 21.94
200 8 219.08 2.77 3.4 - 6.35 7.04 8.18 8.18 8.18 10.31 12.7 12.7 12.7 15.09 22.22
250 10 273.05 3.4 3.76 - 6.35 7.8 9.27 9.27 9.27 12.7 12.7 12.7 15.09 18.26 25.4
300 12 323.85 3.96 4.57 - 6.35 8.38 9.52 9.52 10.3 14.27 12.7 12.7 17.48 21.44 -
350 14 355.6 3.96 4.78 6.35 7.92 9.52 *9.52 9.52 11.13 15.09 12.7 12.7 19.05 23.83 -
400 16 406.4 4.19 4.78 6.35 7.92 9.52 *9.52 9.52 12.7 16.66 12.7 12.7 21.44 26.19 -
450 18 457.2 4.19 4.78 6.35 7.92 11.12 *9.52 9.52 14.27 19.05 12.7 12.7 23.82 29.36 -
500 20 508 4.78 5.54 6.35 7.92 12.7 *9.52 9.52 15.09 20.62 12.7 12.7 26.19 32.54 -
550 22 558.8 4.78 5.54 6.35 7.92 12.7 *9.52 9.52 - 22.22 12.7 12.7 28.58 34.92 -
600 24 609.6 5.54 6.35 6.35 7.92 14.27 *9.52 9.52 17.48 24.61 12.7 12.7 30.96 38.89 -
650 26 660.4 - *7.92 7.92 12.7 - *9.52 9.52 - - 12.7 12.7 - - -
700 28 711.2 - *7.92 7.92 12.7 15.88 *9.52 9.52 - - 12.7 12.7 - - -
750 30 762 6.35 *7.92 7.92 12.7 15.88 *9.52 9.52 - - 12.7 12.7 - - -
800 32 812 - *7.92 7.92 12.7 15.88 *9.52 9.52 17.48 - 12.7 12.7 - - -
850 34 863.6 - *7.92 7.92 12.7 15.88 *9.52 9.52 17.48 - 12.7 12.7 - - -
900 36 914.4 - *7.92 7.92 12.7 15.88 *9.52 9.52 19.05 - 12.7 12.7 - - -
950 38 965.2 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1000 40 1016 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1050 42 1066.8 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1100 44 1117.6 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1150 46 1168.4 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1200 48 1219.2 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1300 52 1320.8 - - - - - - 9.52 - - - 12.7 - - -
1350 54 1371.6 - - - - - - 9.52 - - - 12.7 - - -
1400 56 1422.4 - - - - - - 9.52 - - - 12.7 - - -
1500 60 1524 - - - - - - 9.52 - - - 12.7 - -
1600 64 1625.6 - - - - - - 9.52 - - - 12.7 - -
1700 68 1727.2 - - - - - - 9.52 - - - 12.7 - -
1800 72 1828.8 - - - - - - 9.52 - - - 12.7 - -
1900 76 1930.4 - - - - - - 9.52 - - - 12.7 - -
2000 80 2032 - - - - - - 9.52 - - - 12.7 - -



Standard for carbon steel pipe



API 5L for use in conveying gas, water, and oil in the natural gas and oil industries, and covers seamless and welded steel line pipe.
API 5CT for casing and tubing
ASTM A53 for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
ASTM A106 for Seamless Carbon Steel Pipe for High-Temperature Service
ASTM A179 for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
ASTM A192 for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A213 for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A252 for Welded and Seamless Steel Pipe Piles
ASTM A333 for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness
ASTM A672 for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures
ASTM A335 for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
DIN 17175 seamless steel pipes are used in boiler installations, high-pressure pipelines and tank construction and special machinery for both high temperature and high-pressure devices.
DIN 1629 specifies the Seamless Circular Tubes of Non Alloys Steels with Special Quality Requirements.
DIN 2391 for Cold Drawn High Precision Seamless Tube
DIN 2458 Welded Steel Pipes in Unalloyed and Low Alloy Steels for Supply Purposes
EN 10210 Seamless steel tubes for pressure purposes
BS 3059 Steel boiler and superheater tubes
JIS G3454 Carbon steel pipes for pressure service

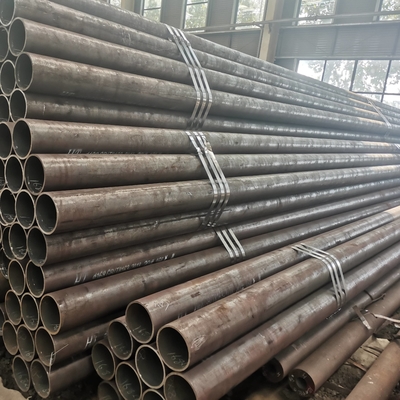

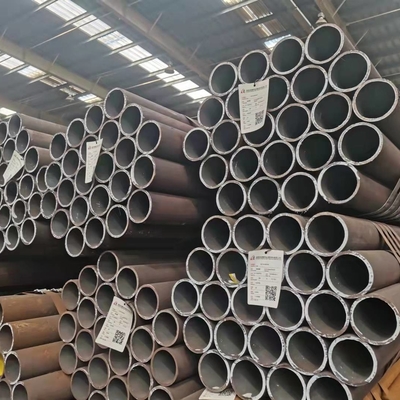

Product Photo

ERW Seamless Carbon Steel Pipe Tube Wall Thickness For Sewage Treatment 0

Factroy Pictures

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1

Pipe & Tube Processing Photo

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2

Application

EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3
Packaging & Shippping

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5

Certificates
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
